ALL lab experiments below to be completed

Lab 1a HERE

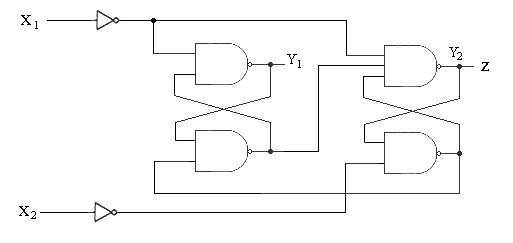

Lab 1b HERE

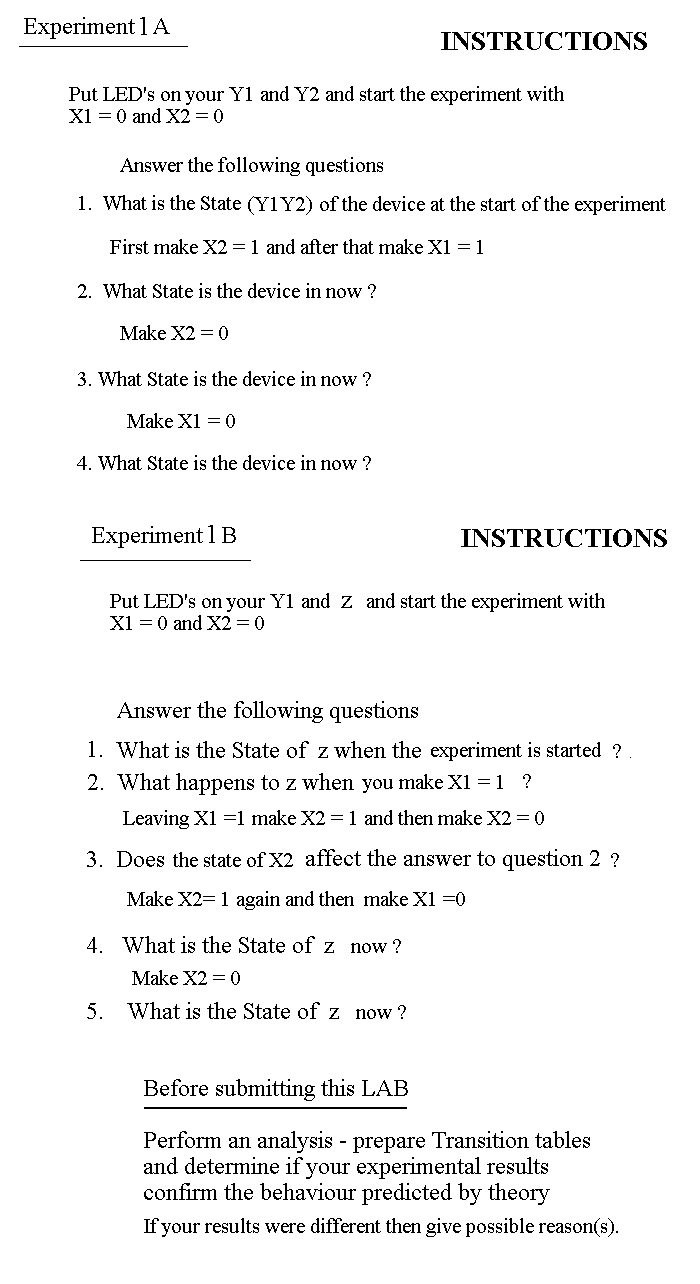

LAB 1 INSTRUCTIONS HERE

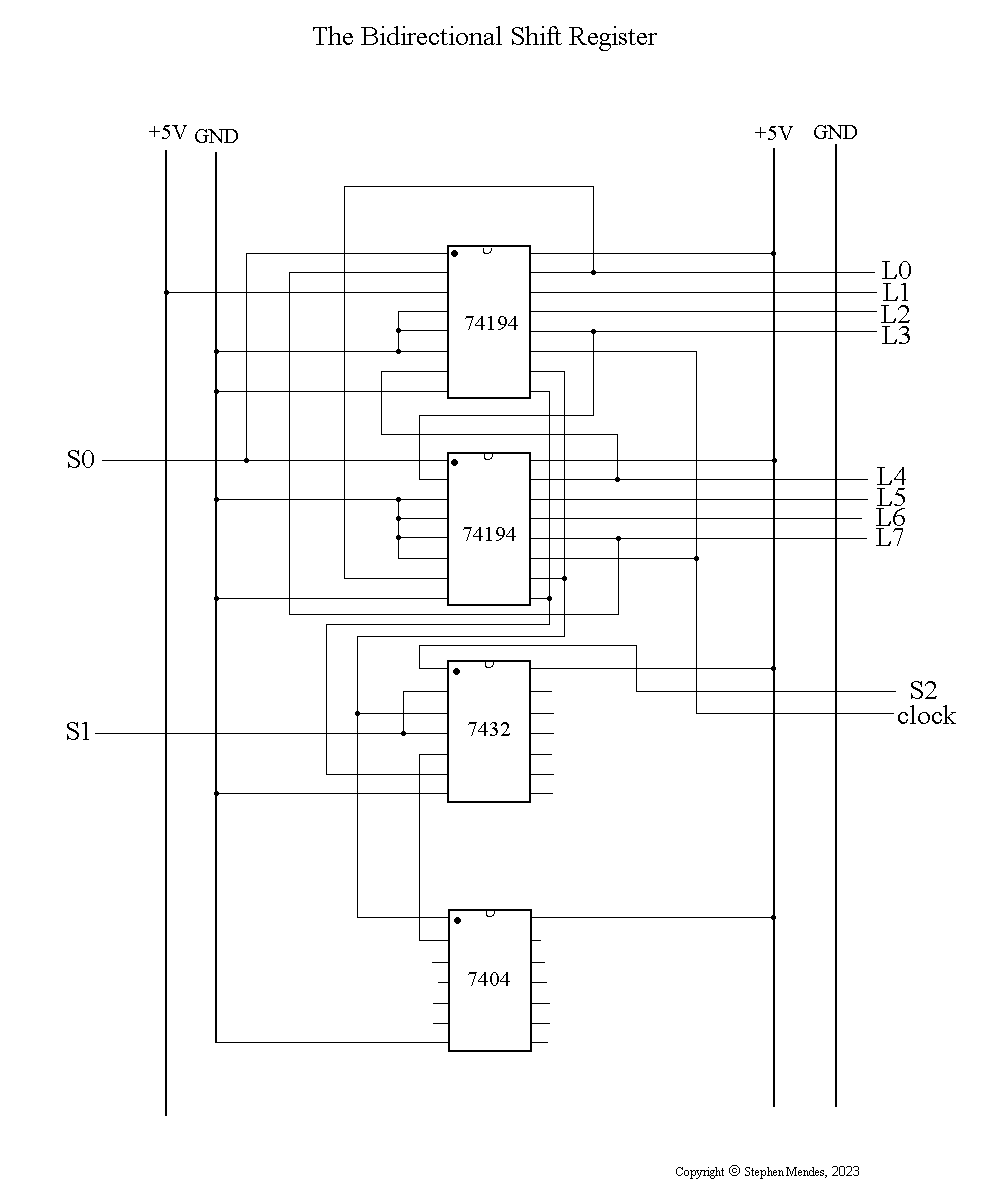

Lab 2a HERE

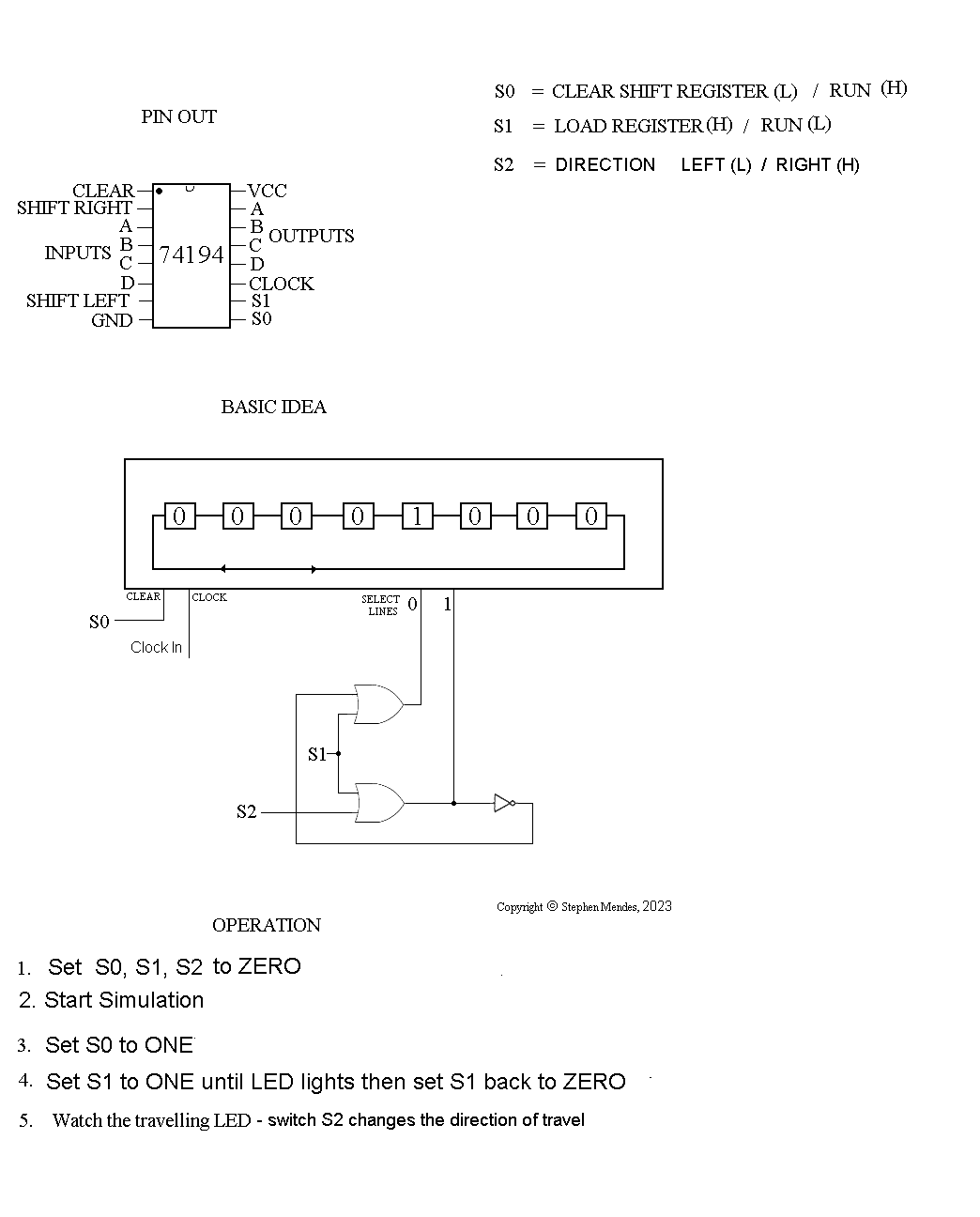

LAB 2a INSTRUCTIONS HERE
For LAB 2b you will investigate Johnson Counters... first build the one below
Johnson Counter
ONLY if the above counter does NOT work properly .... then you may add the correction circuit shown below
Self-Correcting Johnson Counter

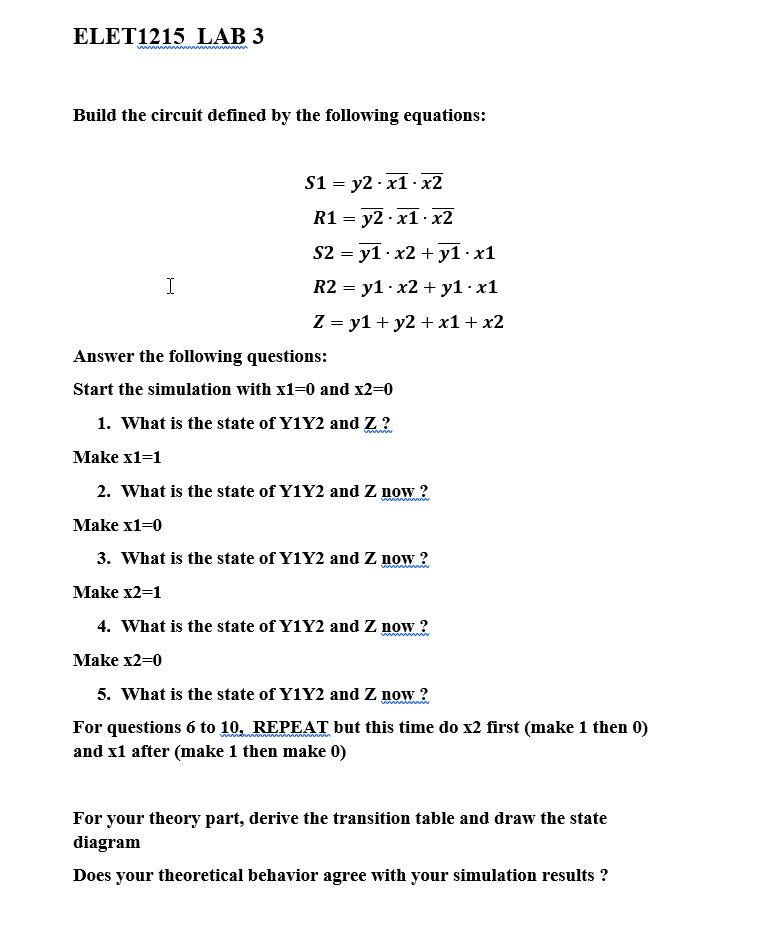

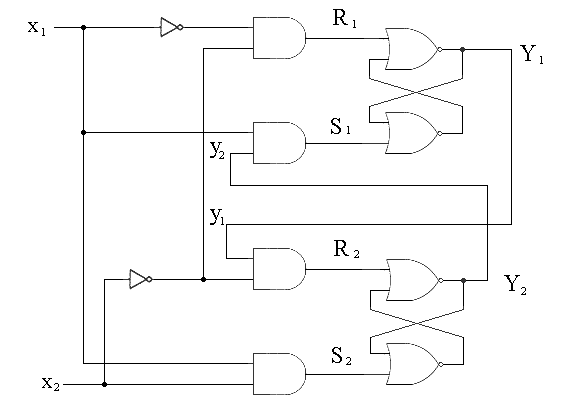

Lab 3 HERE

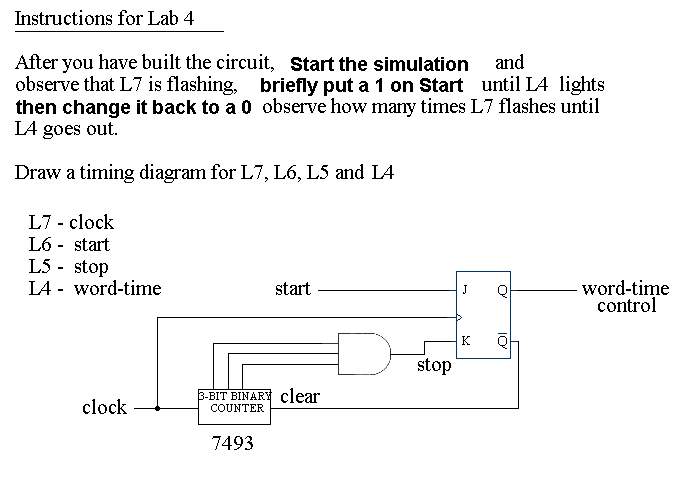

Lab 4 Instructions

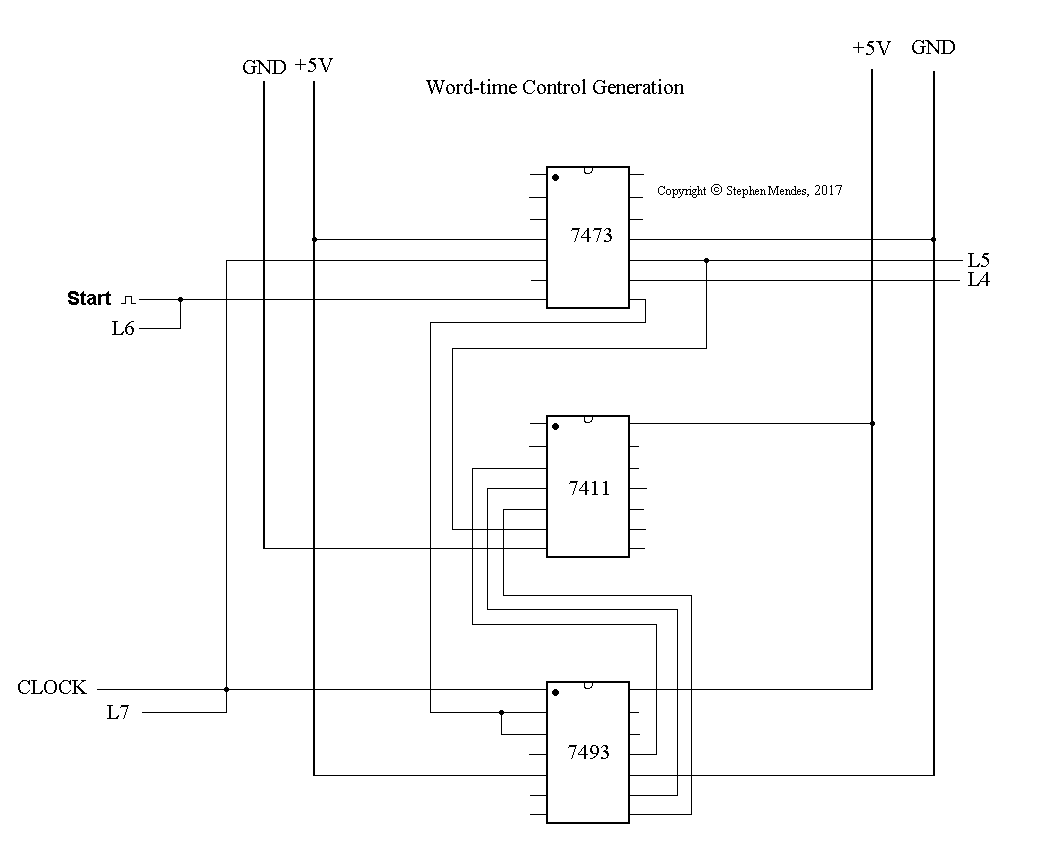

Lab 4 Diagram

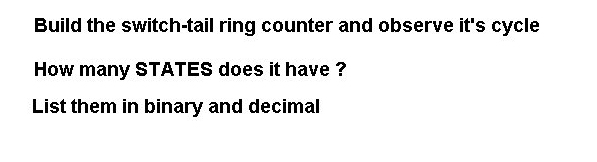

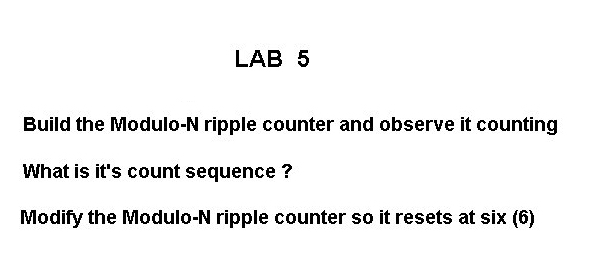

Lab 5 Instructions

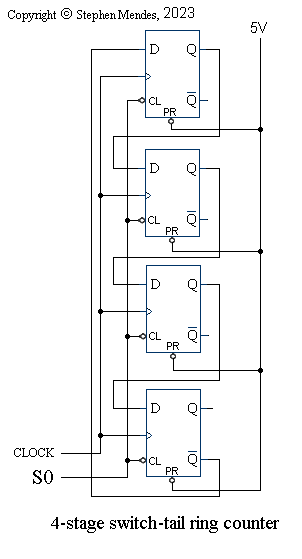

Lab 5 Switch-tail Ring Counter

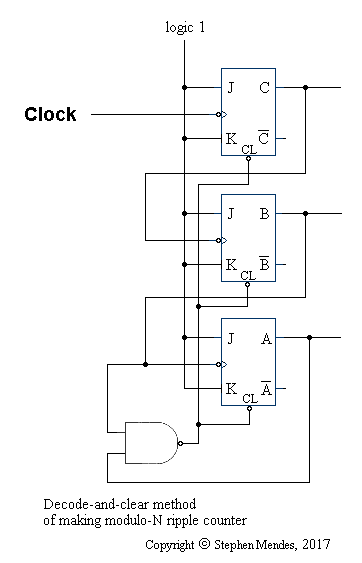

Lab 5 Modulo-N Ripple Counter

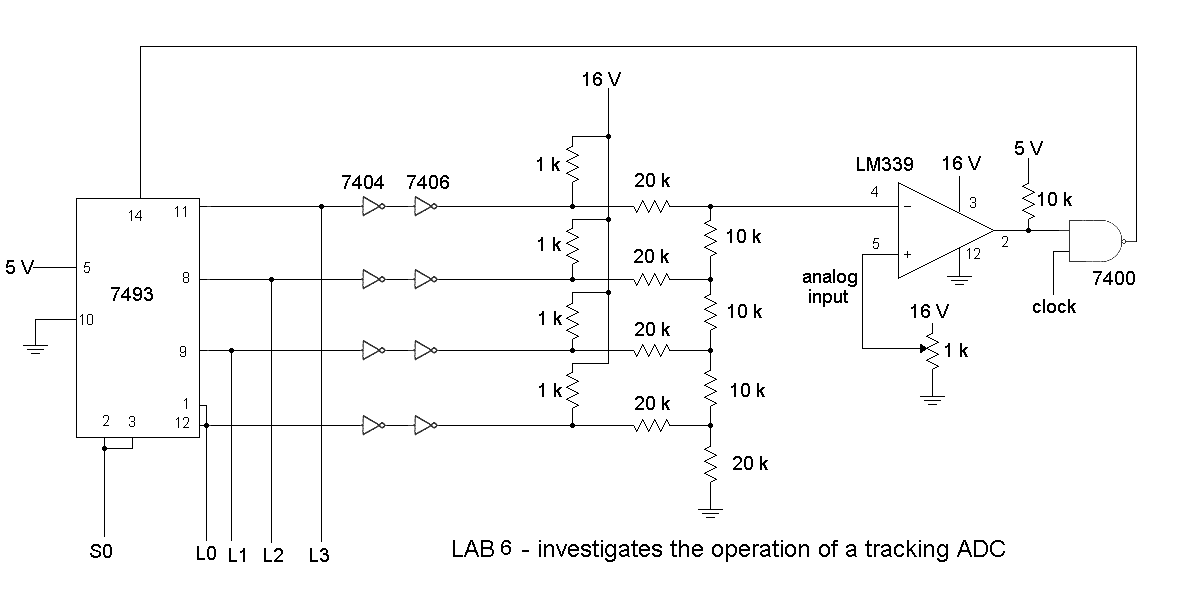

Lab 6 Tracking ADC

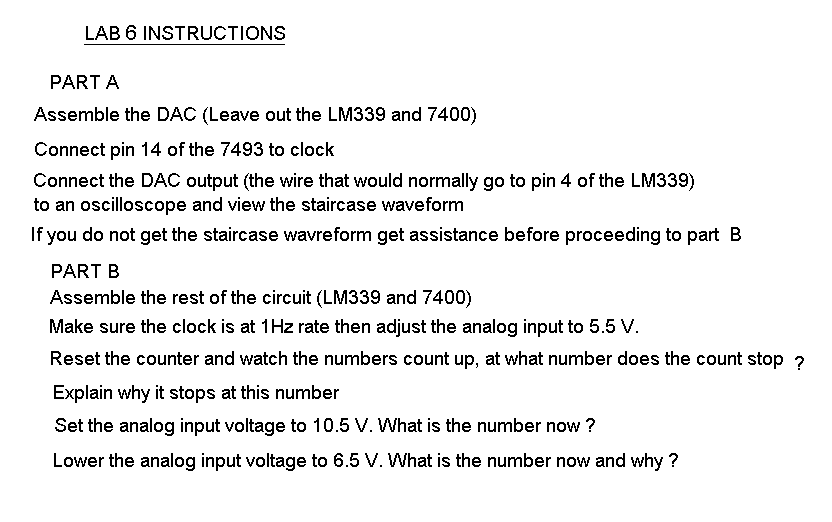

Lab 6 Instructions
