EL22C CLASS TEST #1 ANSWERS   Thursday, March 8, 2001

1. To achieve linear amplification it is desirable to set the operating point for the device at the most linear part of it's operating range

2. As a switch.

3. Dependence on and thermal runaway.

4. Greater packing density on silicon wafers, high input impedance, lower noise, greater thermal stability

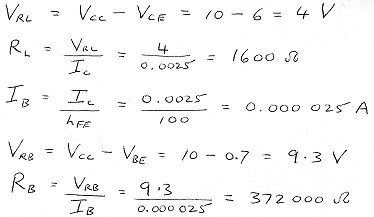

5.

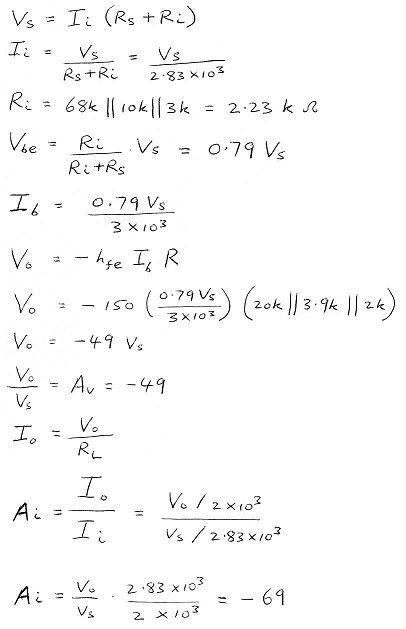

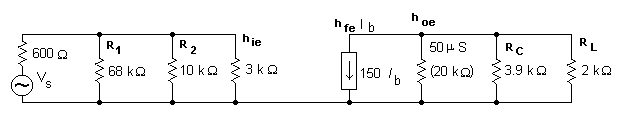

6.

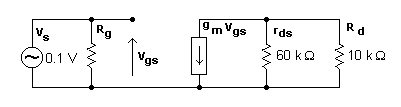

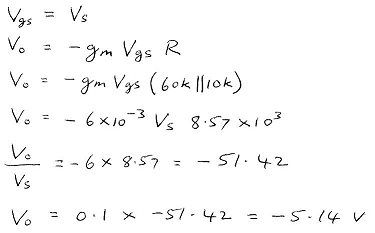

7.
