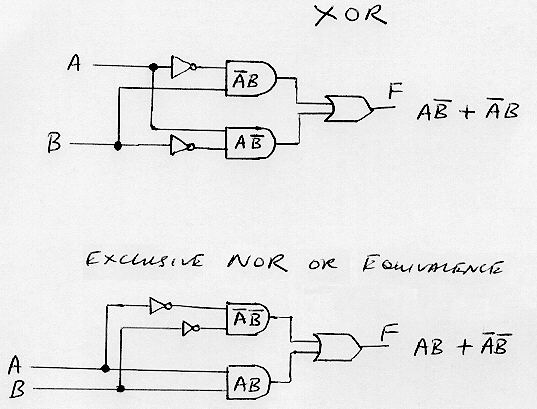

1. Draw gate diagrams to implement the Exclusive-OR and Exclusive-NOR functions using only AND, OR, NOT gates.

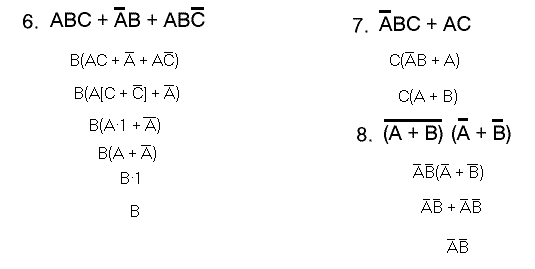

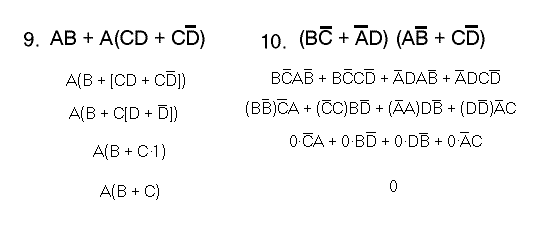

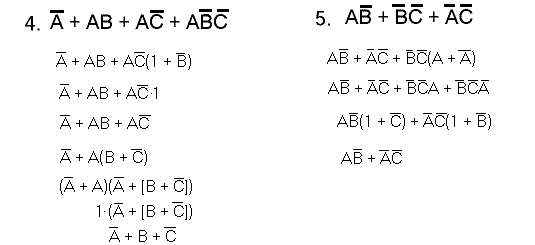

2. Simplify the following Boolean expressions using the rules given you in class:

3. Write the Truth Table for a 3-input AND gate.

ABC    F
000       0
001       0
010       0
011       0
100       0
101       0
110       0
111       1
