ELET3130 BOARD PHOTOS

COURSE WORK MARKS

Below are the marks out of 40 .... your final examination will be out of 60
If you do not see your mark.... or if you have questions about your mark... you may contact me at 230-4818 (or Whatsapp)

Demonstration Videos

Dedicated DSP filter chip in Roland FA-06 workstation [0:19 - 1:15]
Software DSP filter coded into Arturia Modular V computer program [3:03 - 4:47]
Analog filters in modular cabinet [2:53 - 4:39]
Demonstration of NON-LINEAR mixing of signals (Modulation)
Demonstration of LINEAR mixing and comparison to non-linear sound
Effect of Sample Rate on AD-DA conversion

Lecture 1 & 2

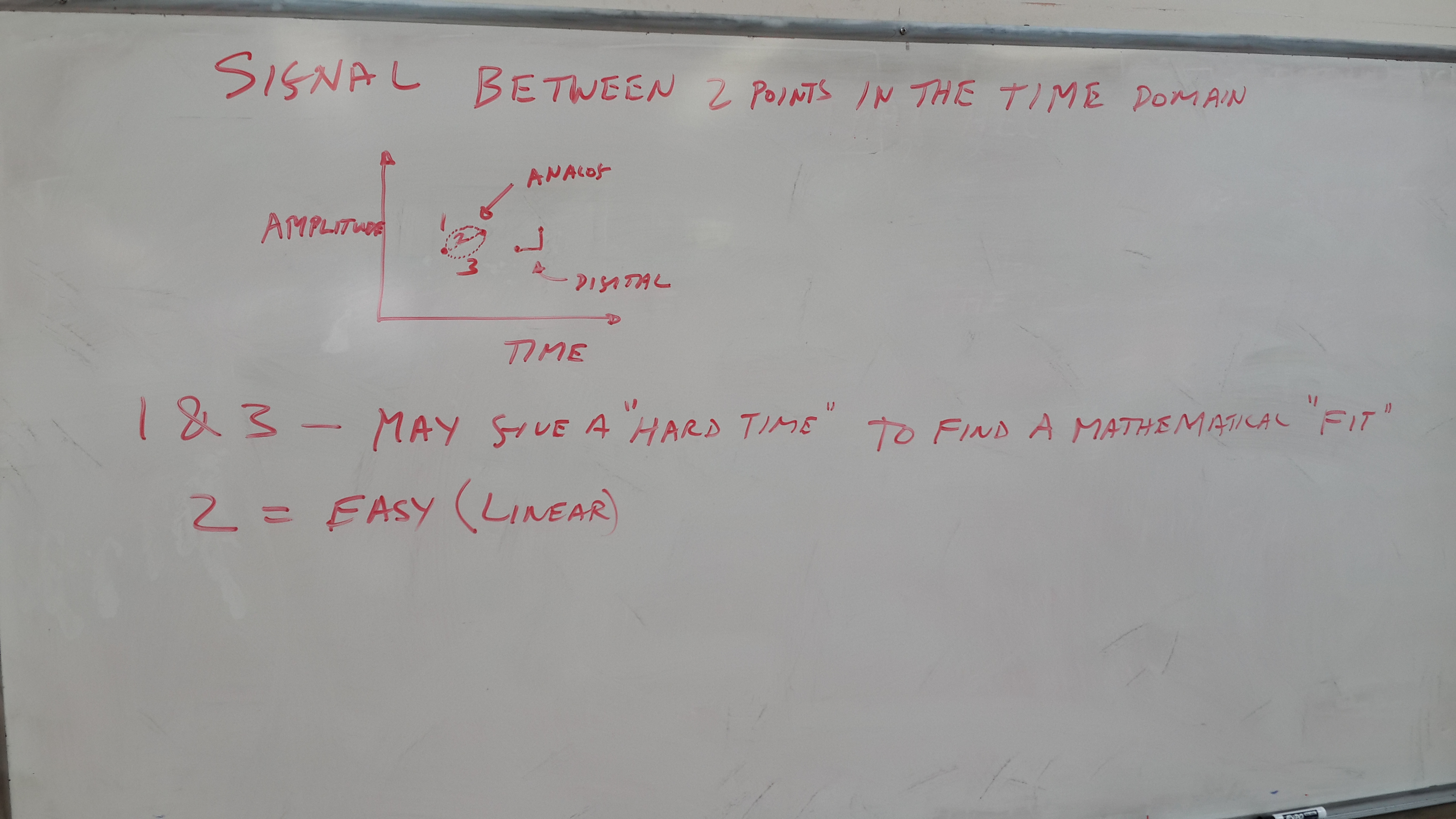

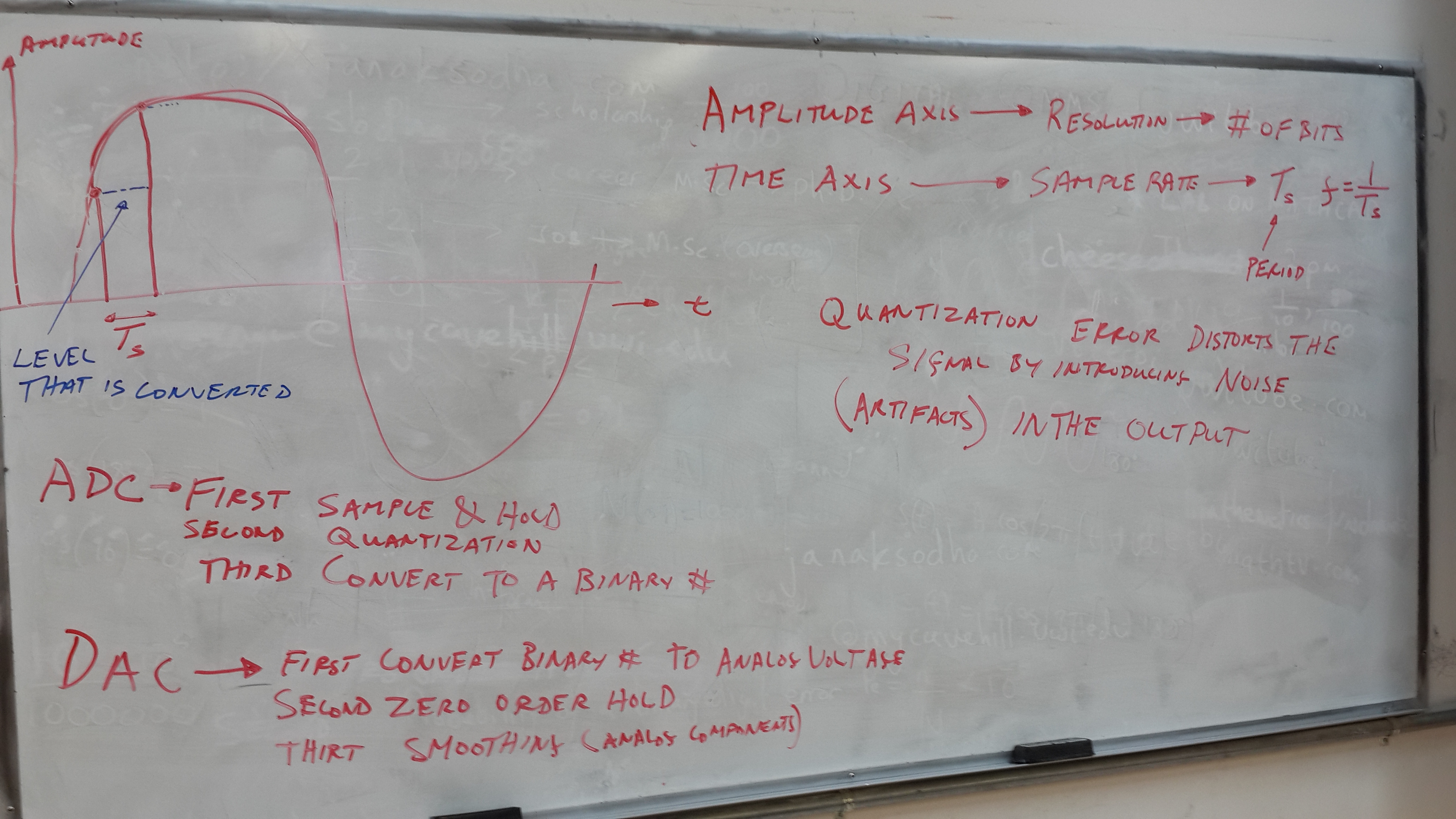

Analog and Digital signals

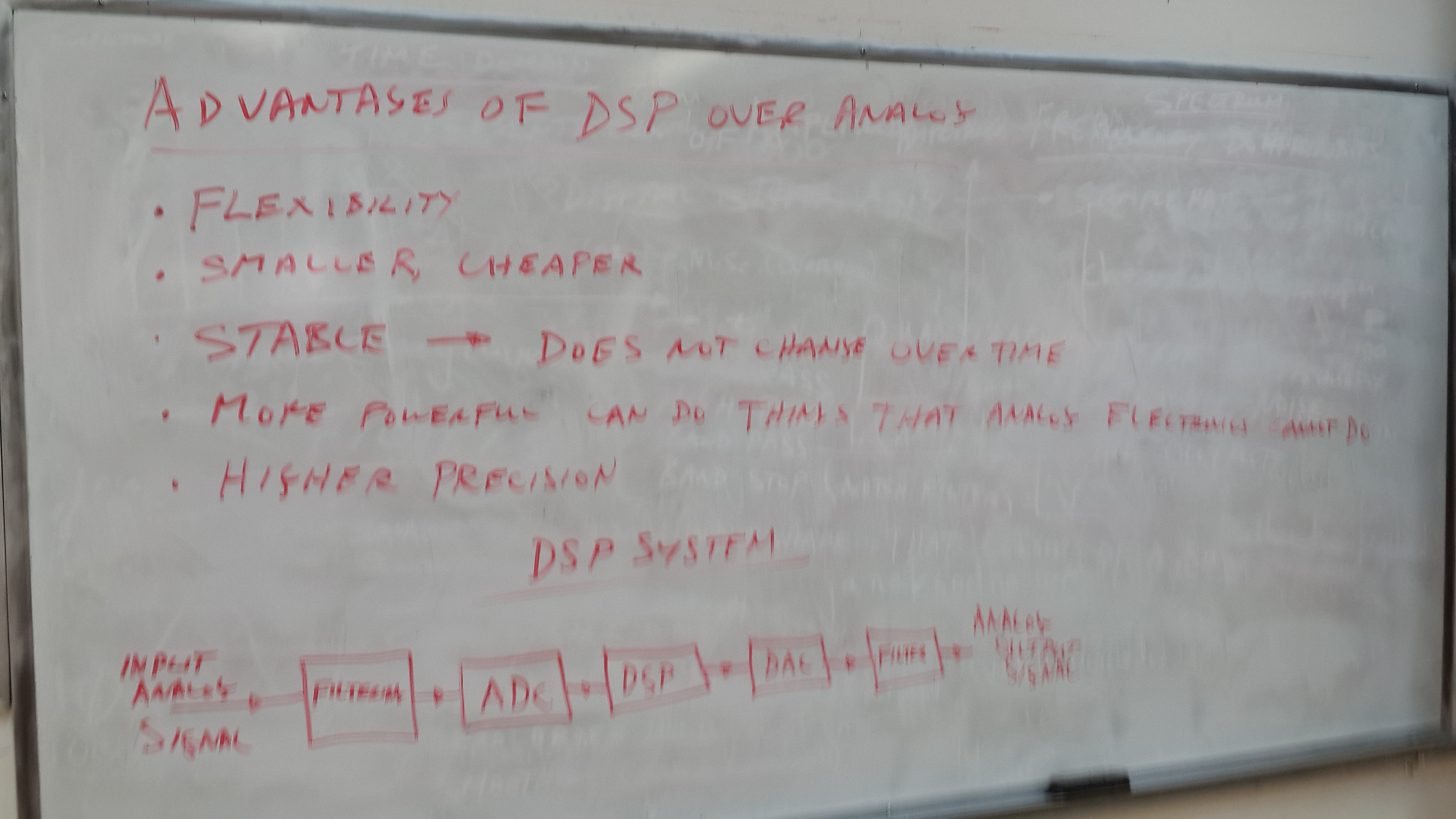

Advantages of DSP

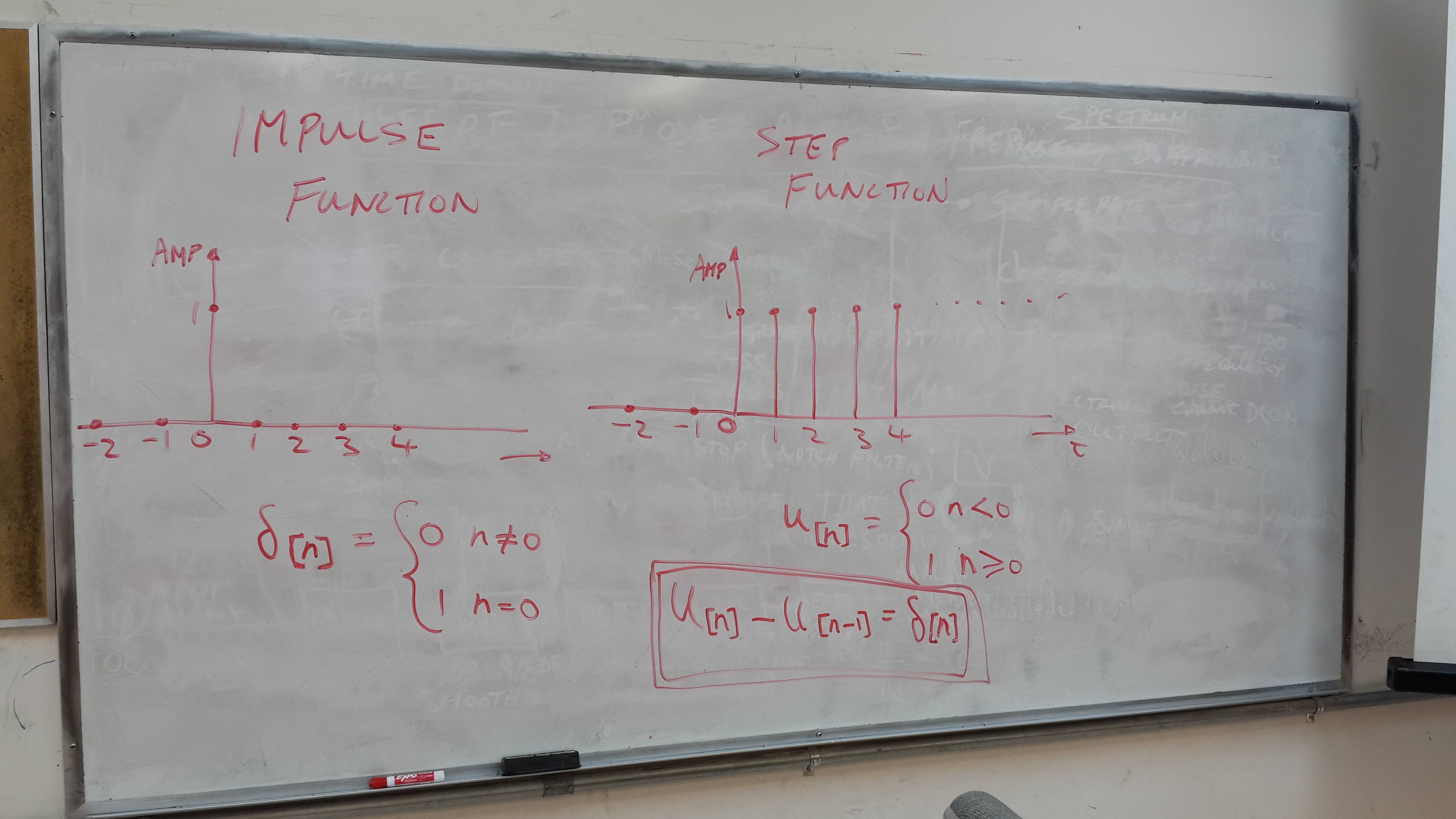

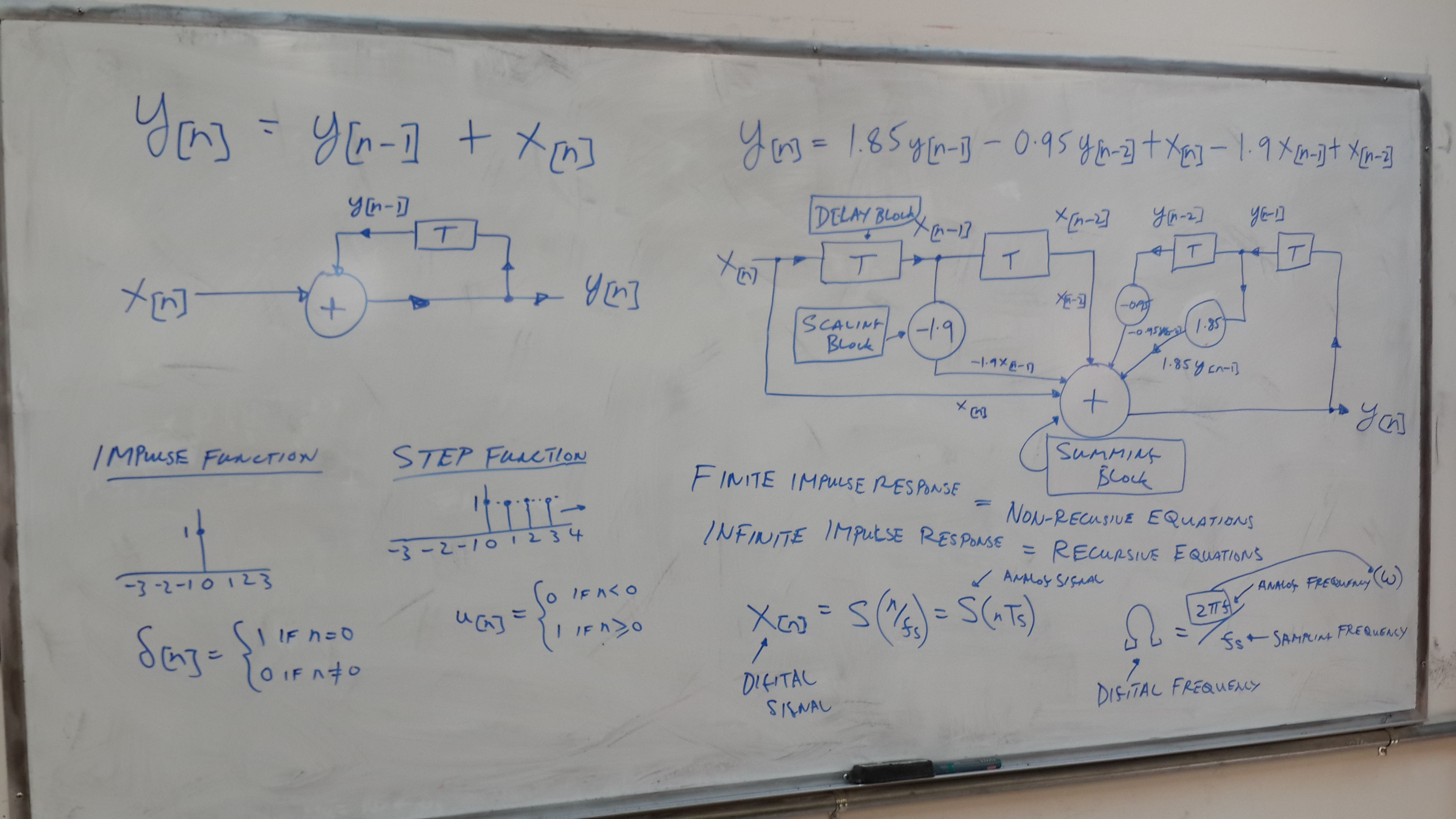

Impuse and Step functions

Lecture 3 & 4

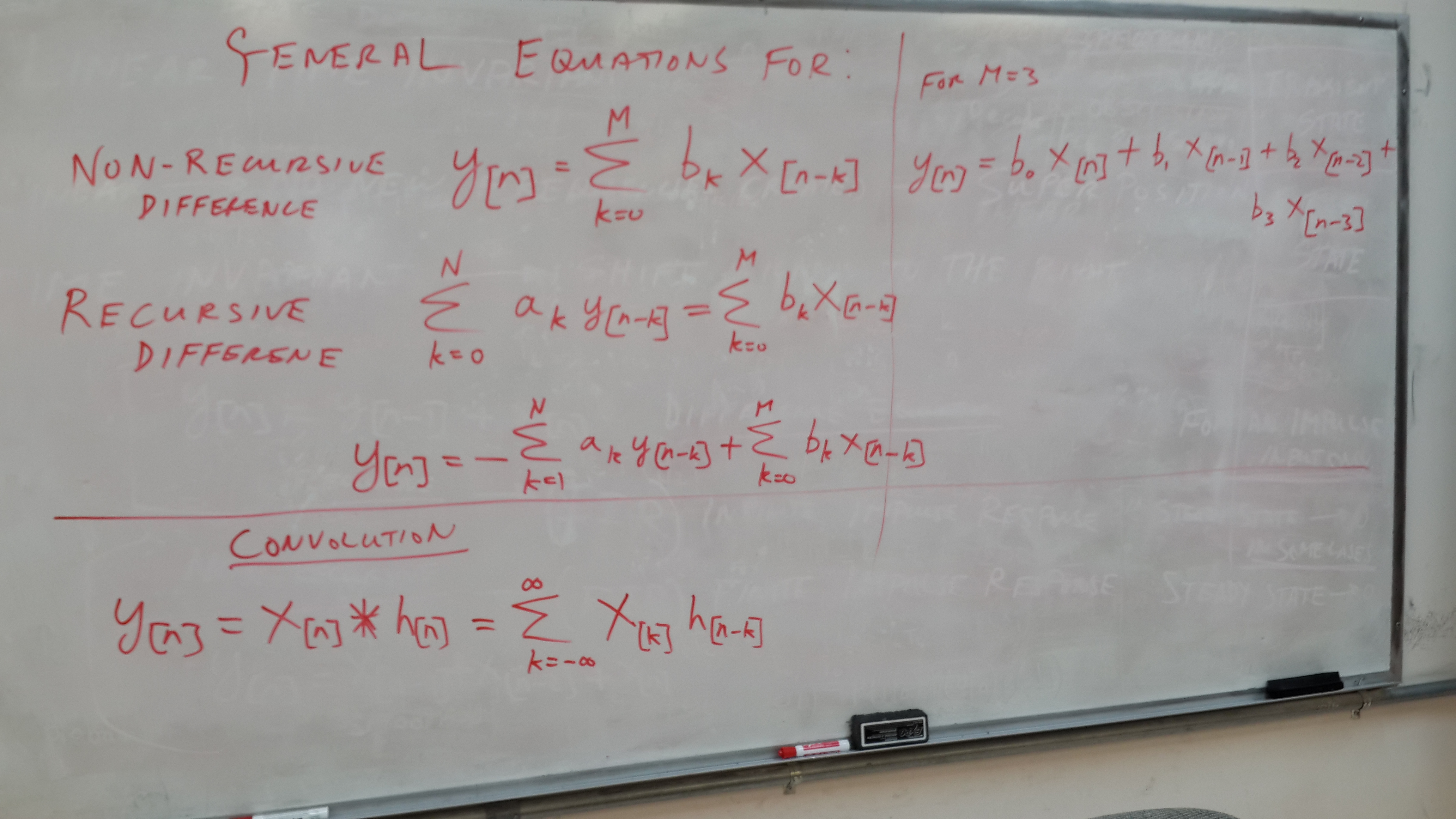

Recursive and non-recursive difference equations / convolution

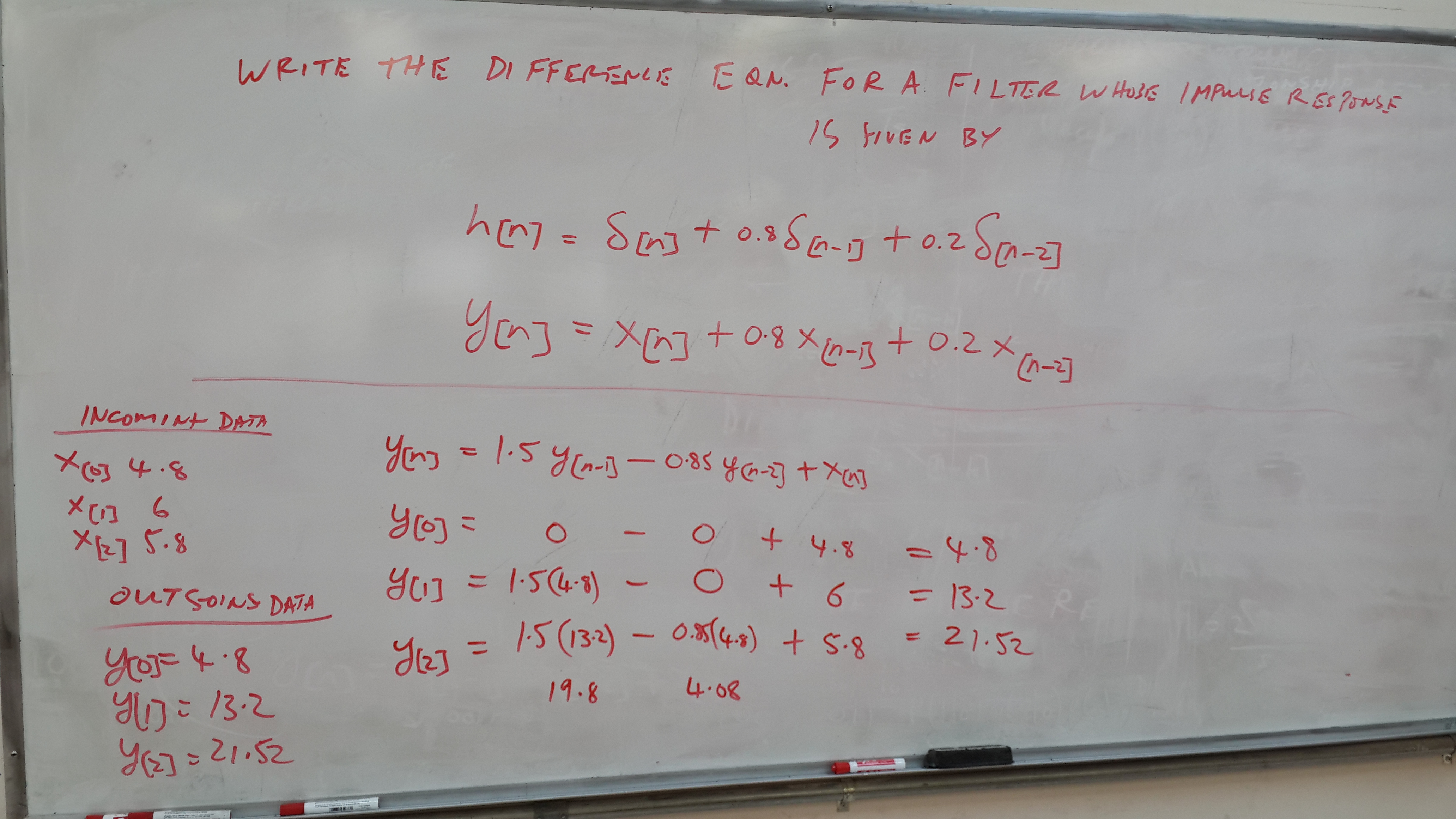

Example of Difference equation calculation

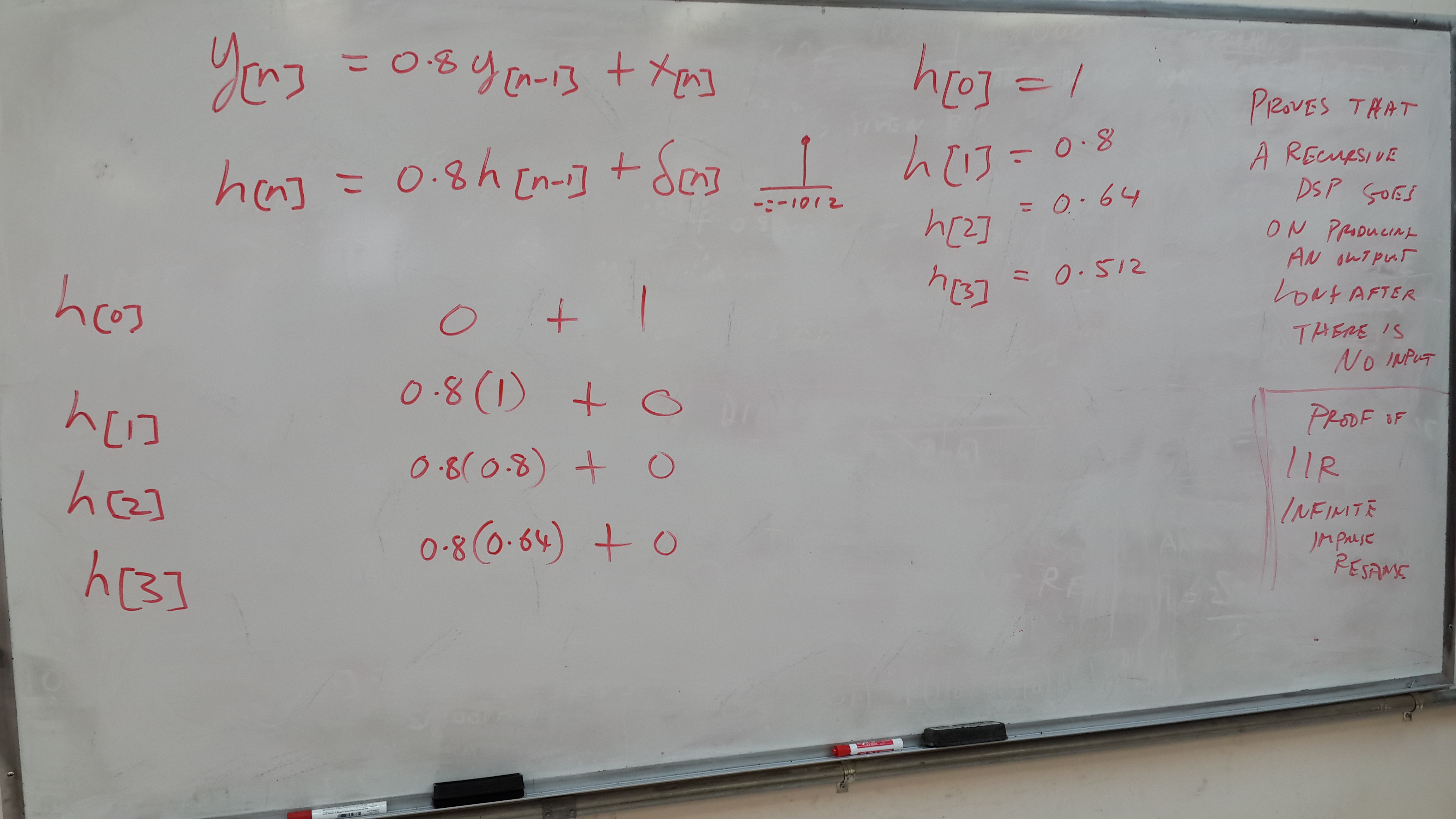

Difference equations and impulse response
Cascaded DSP's

Lecture 5 & 6

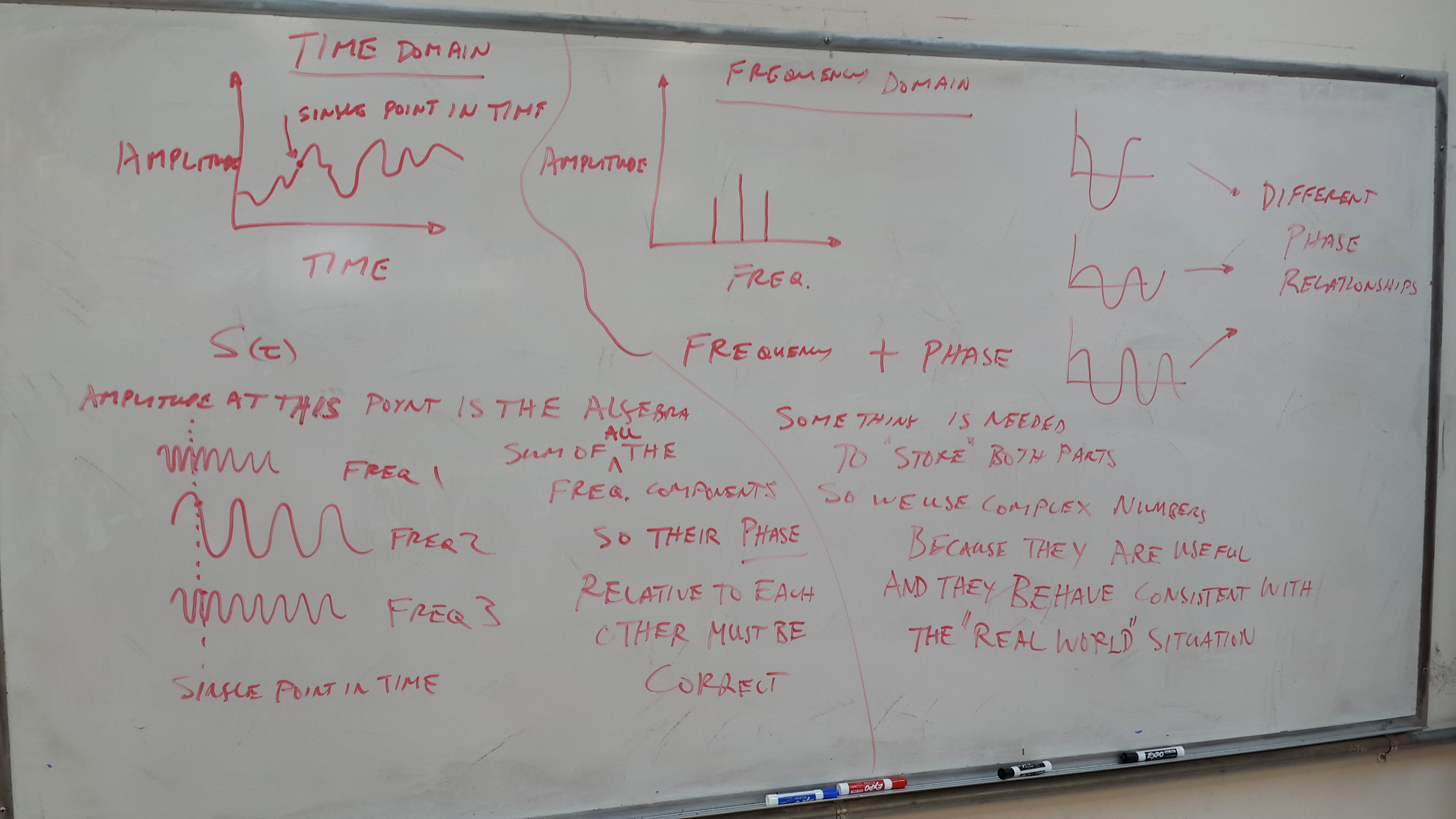

Time Domain and Frequency Domain
Euler's Relation
Signal Functions
Math Tools
Fourier

Summary Lecture

Difference equations and their block diagrams

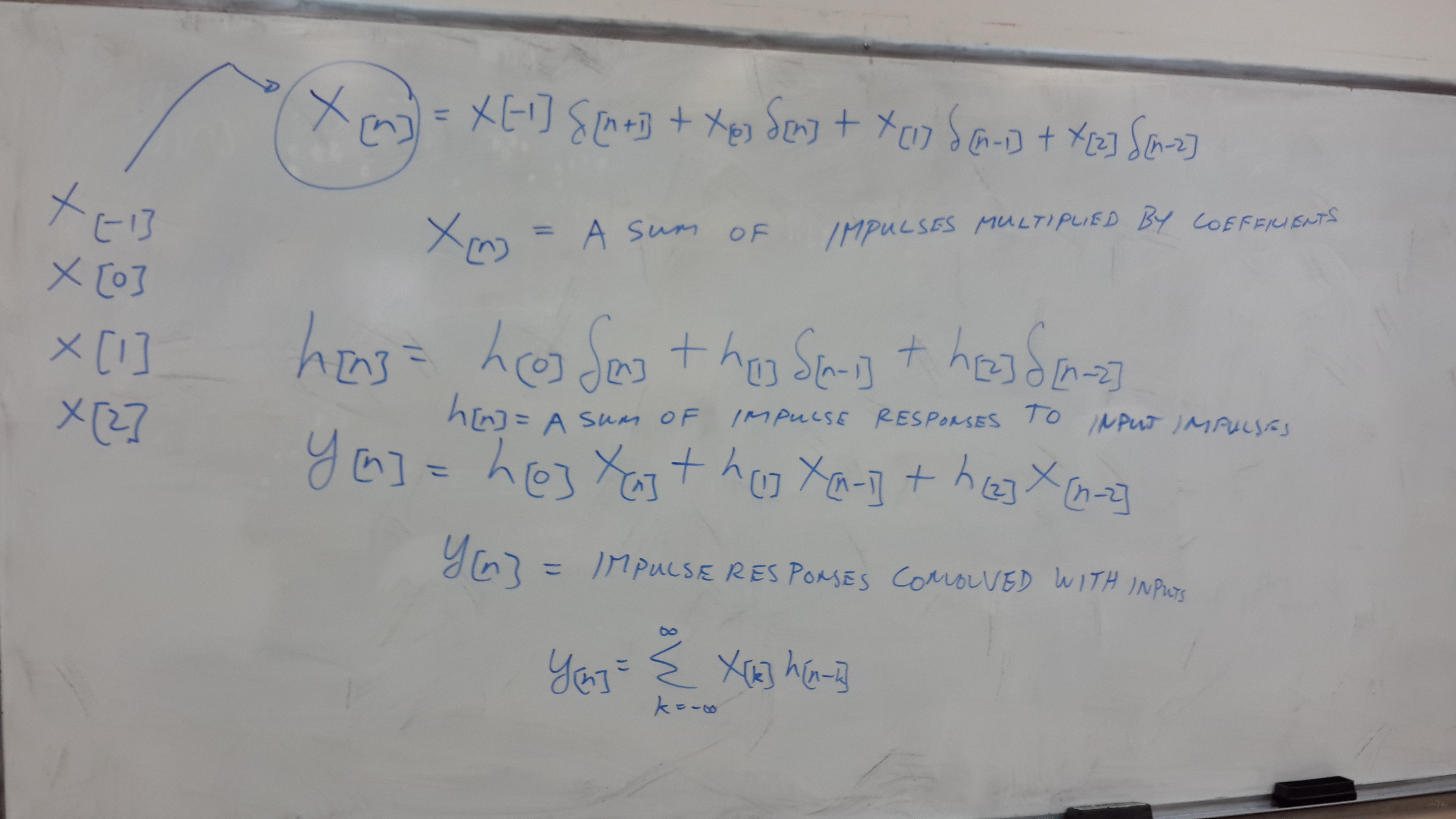

Input as a sum of impulses & output as a sum of impulse responses

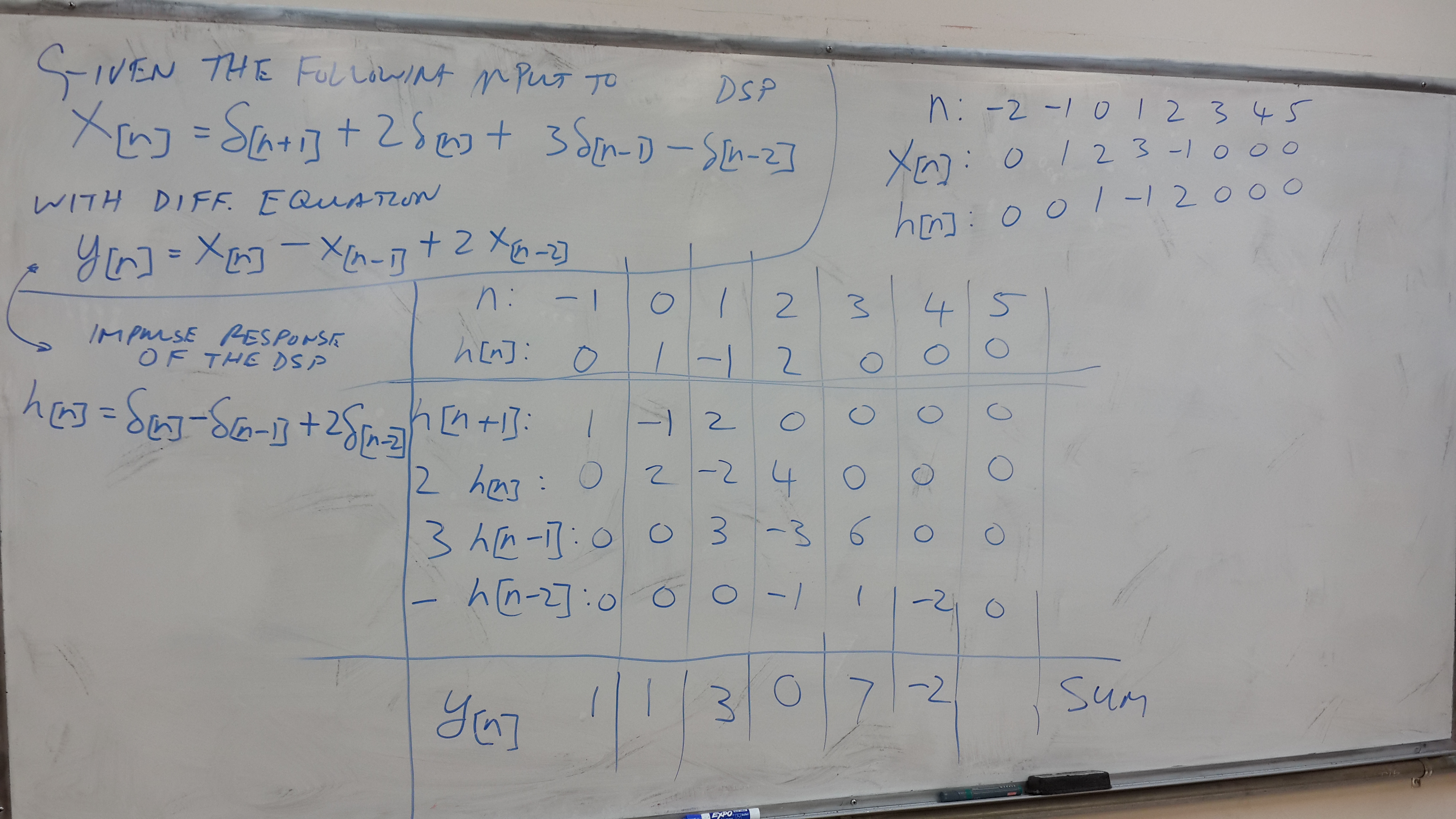

Using a table to perform convolution

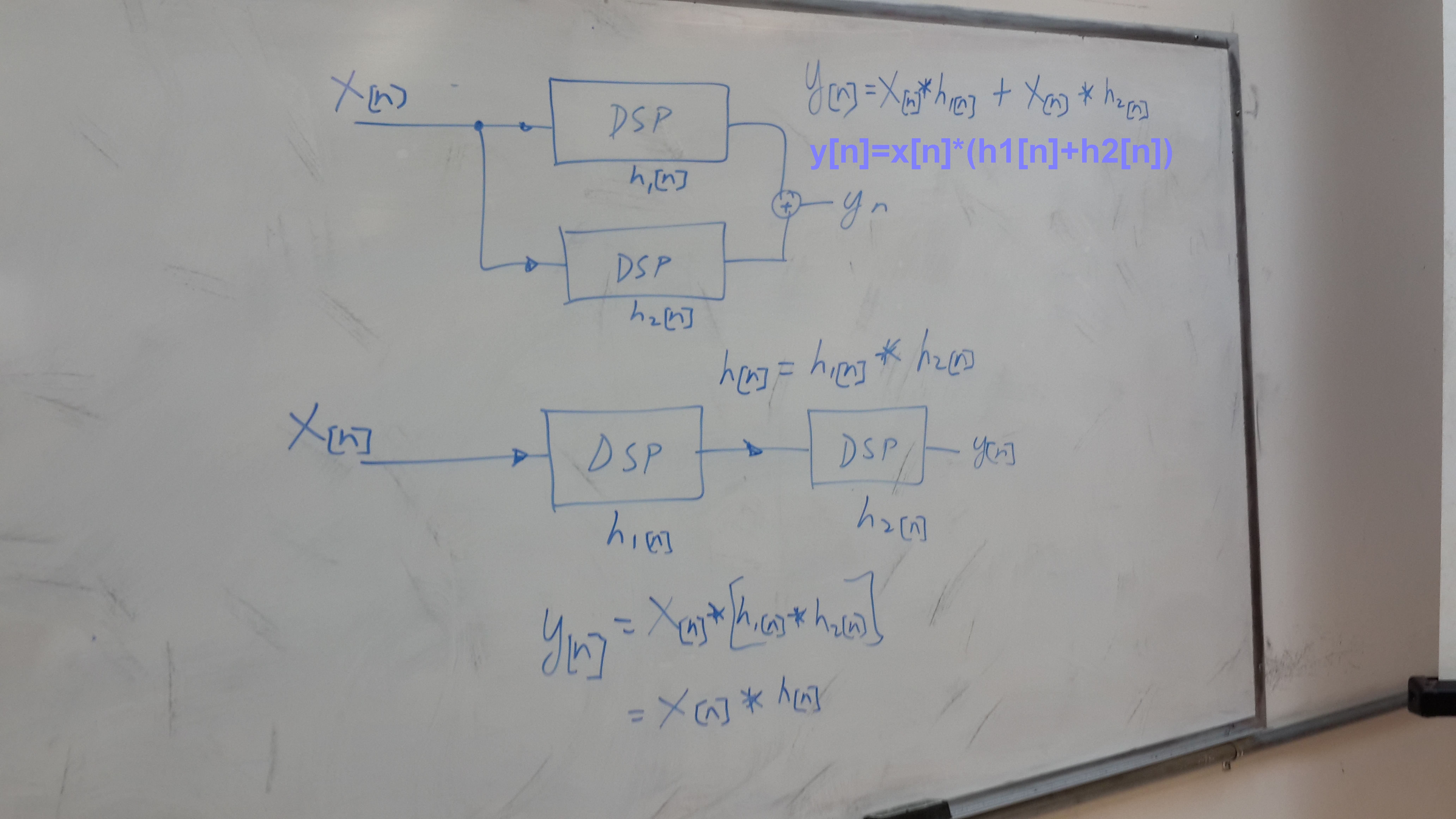

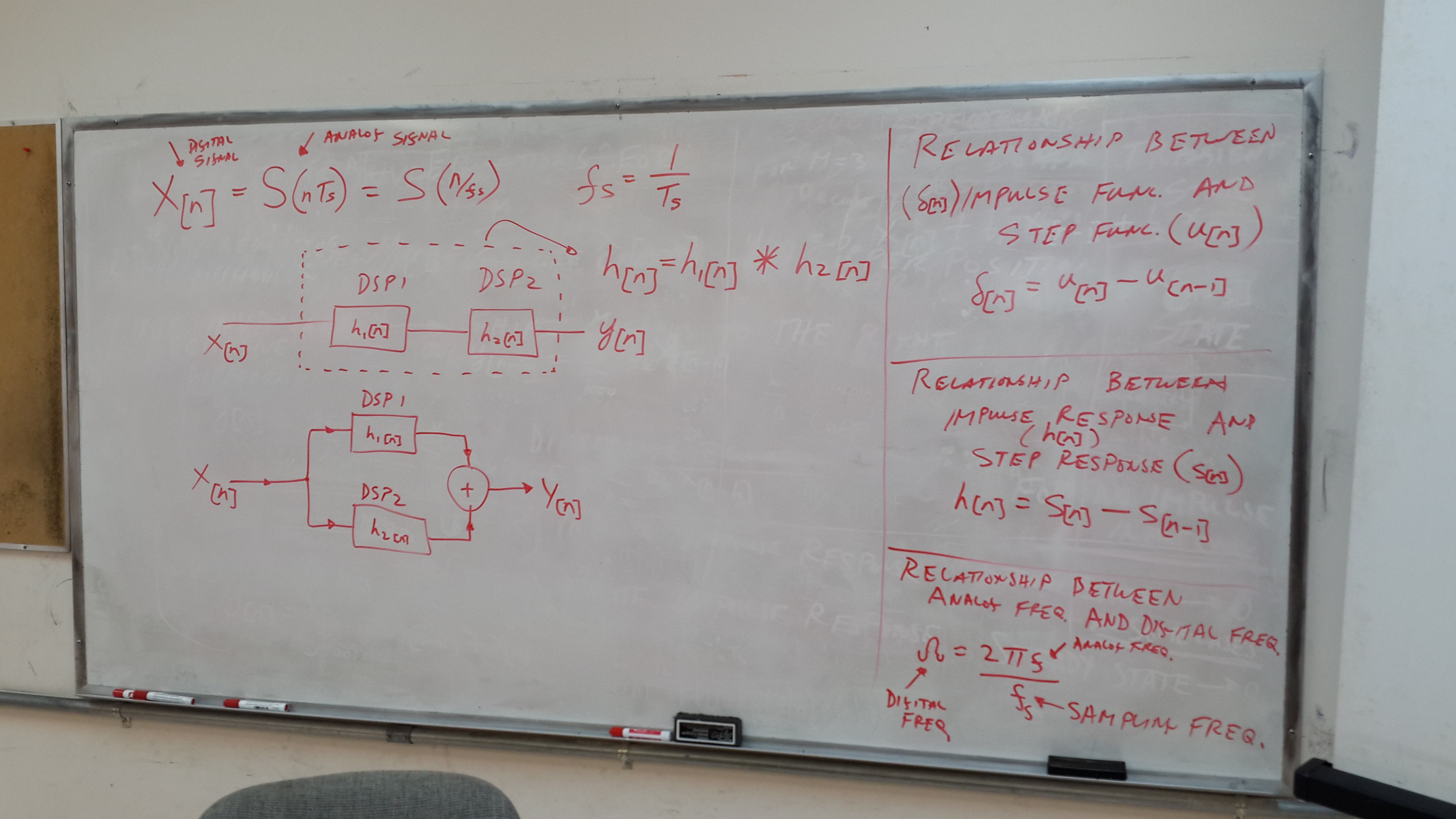

DSP's in series and parallel

Lecture - Oct 17

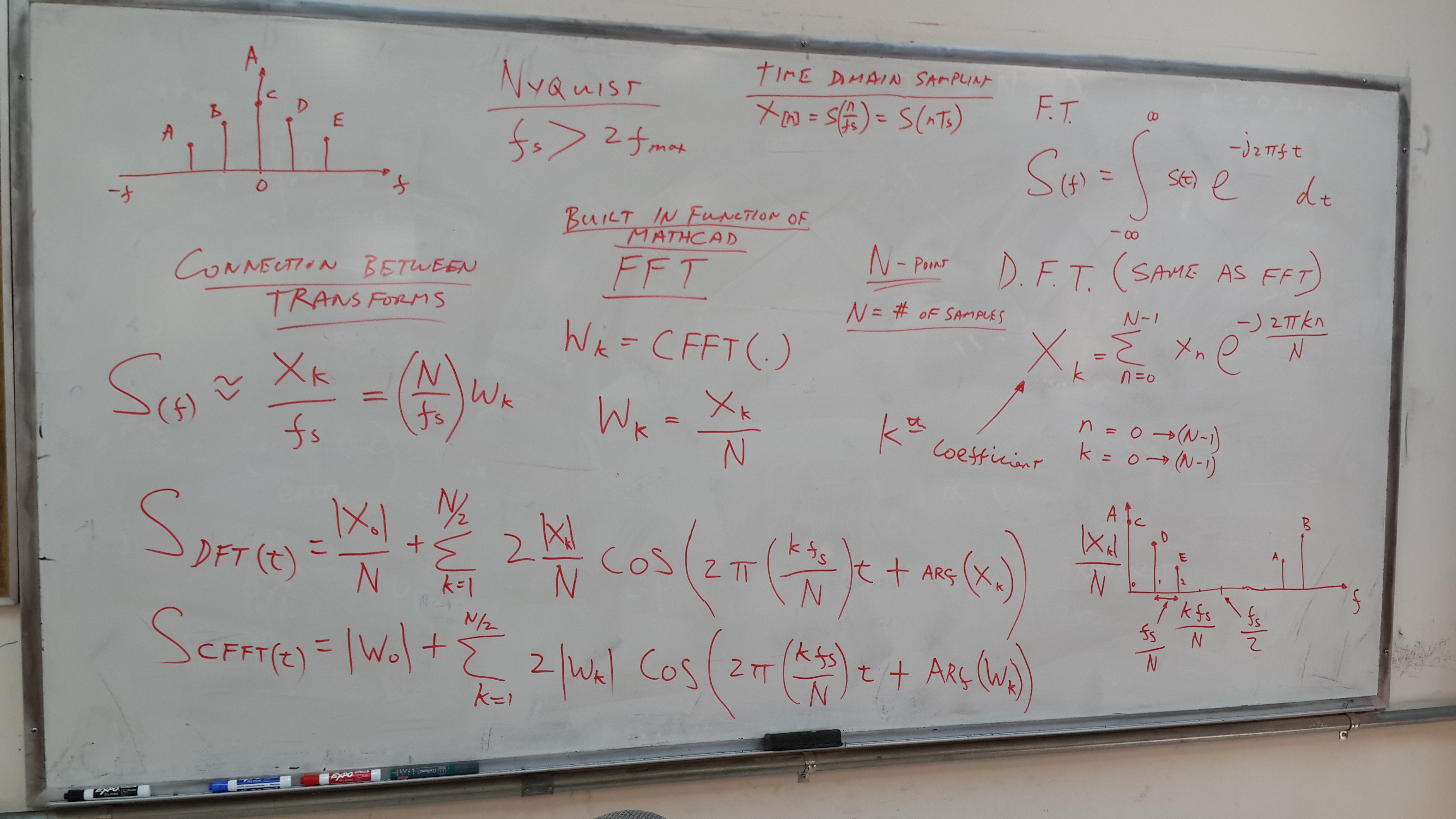

Fourier Transform, Fast Fourier Transform and Discrete Fourier Transform

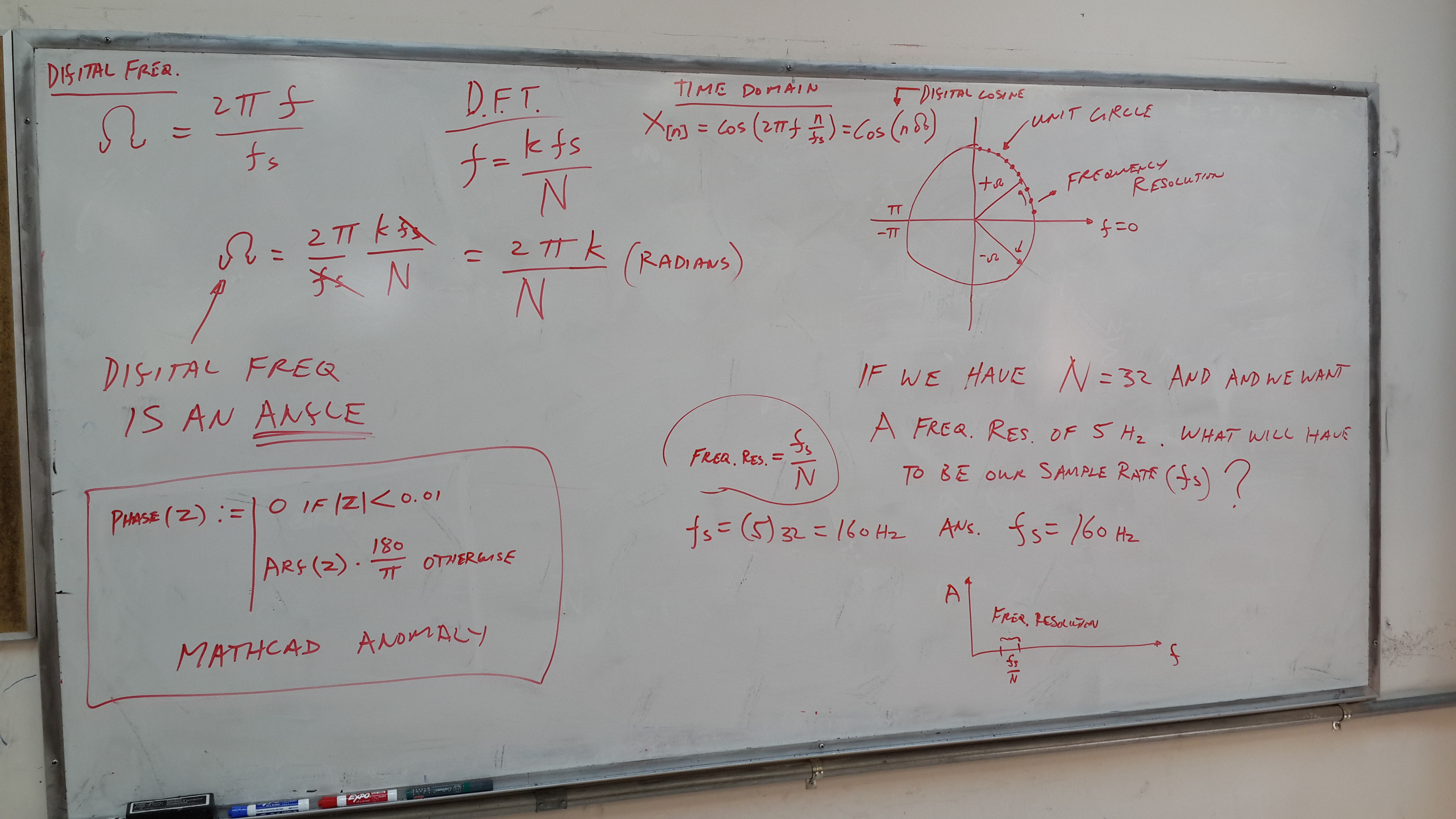

Digital Frequency, Unit Circle, Frequency Resolution and the DFT

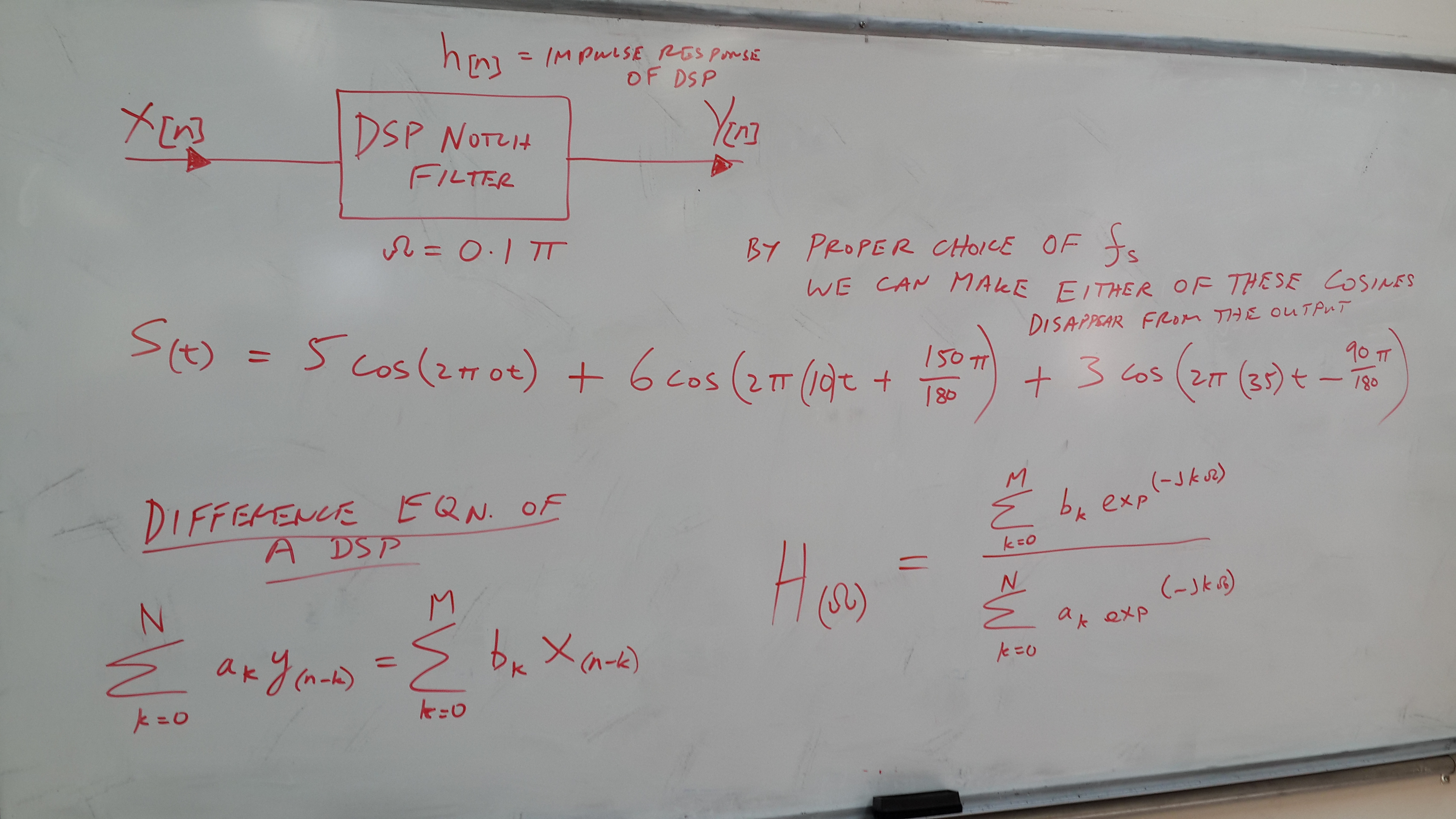

Notch Filter, Frequency Response from the Difference Equation
Worked example of Frequency Response from the Difference Equation

Lecture - Oct 19

Frequency Response and Complex Numbers

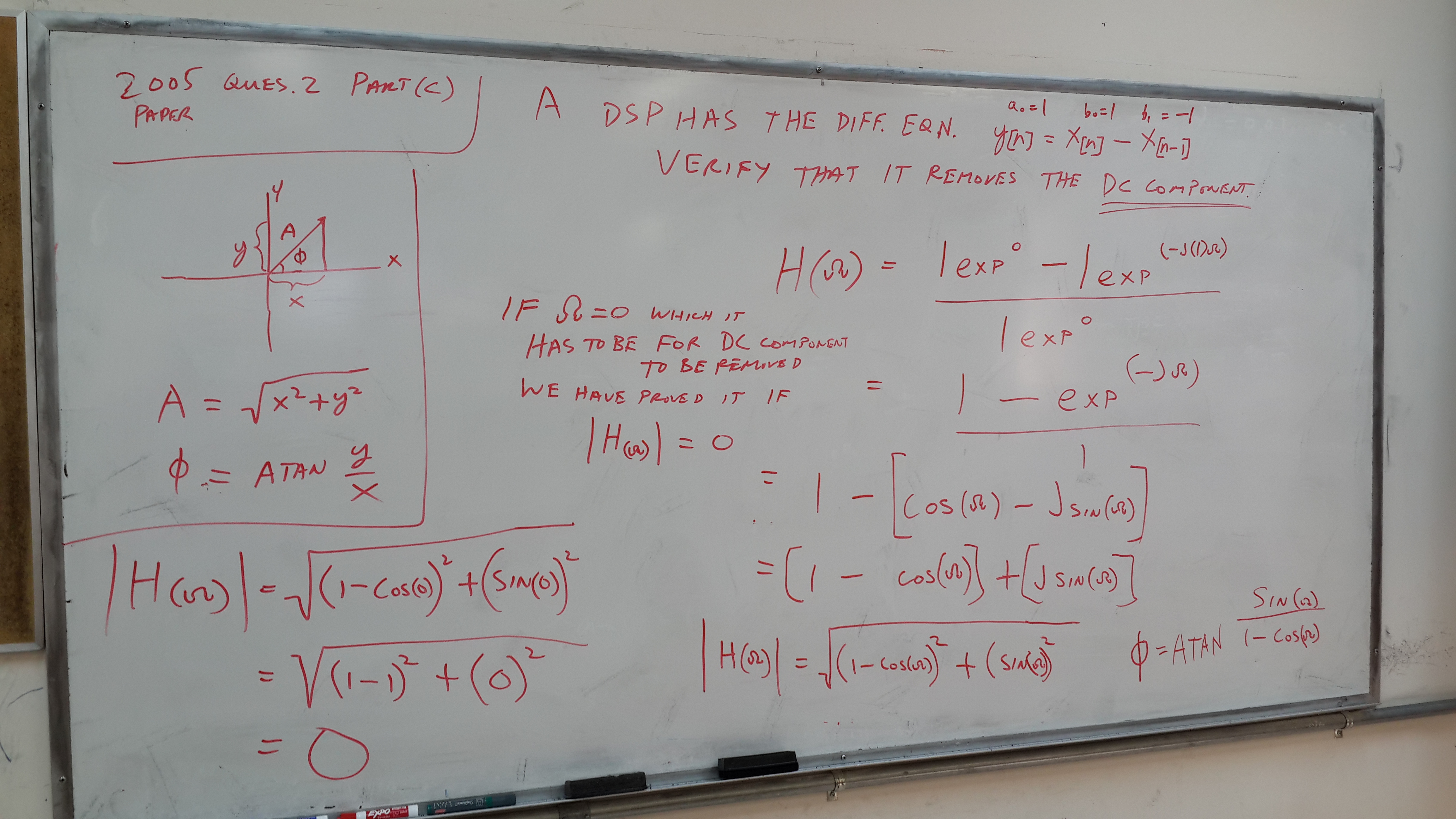

Worked Example - finding the magnitude and phase response from the Frequency Response

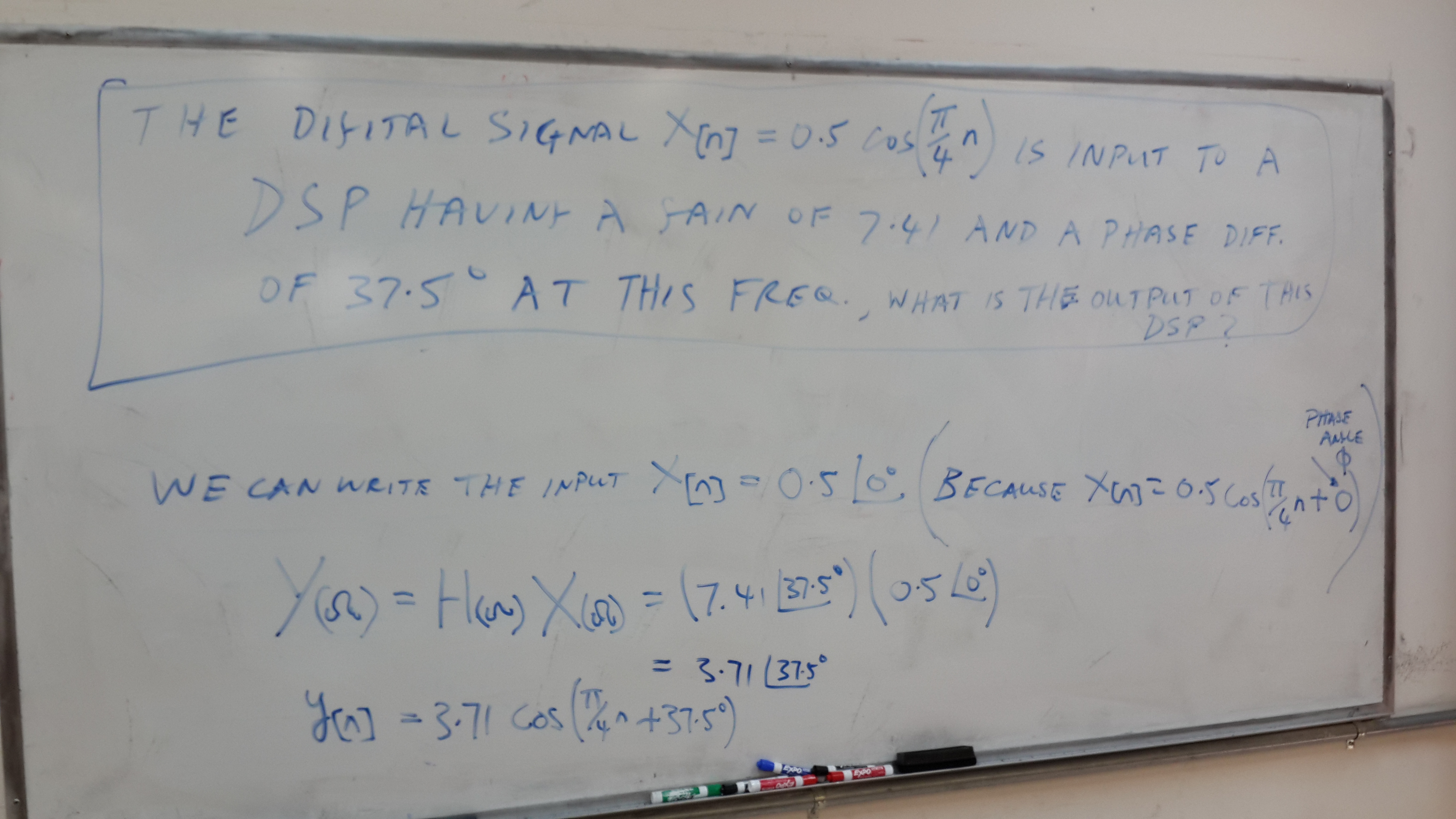

Worked Example - finding the output of the DSP from the Frequency Response and the input

Lecture - Oct 26

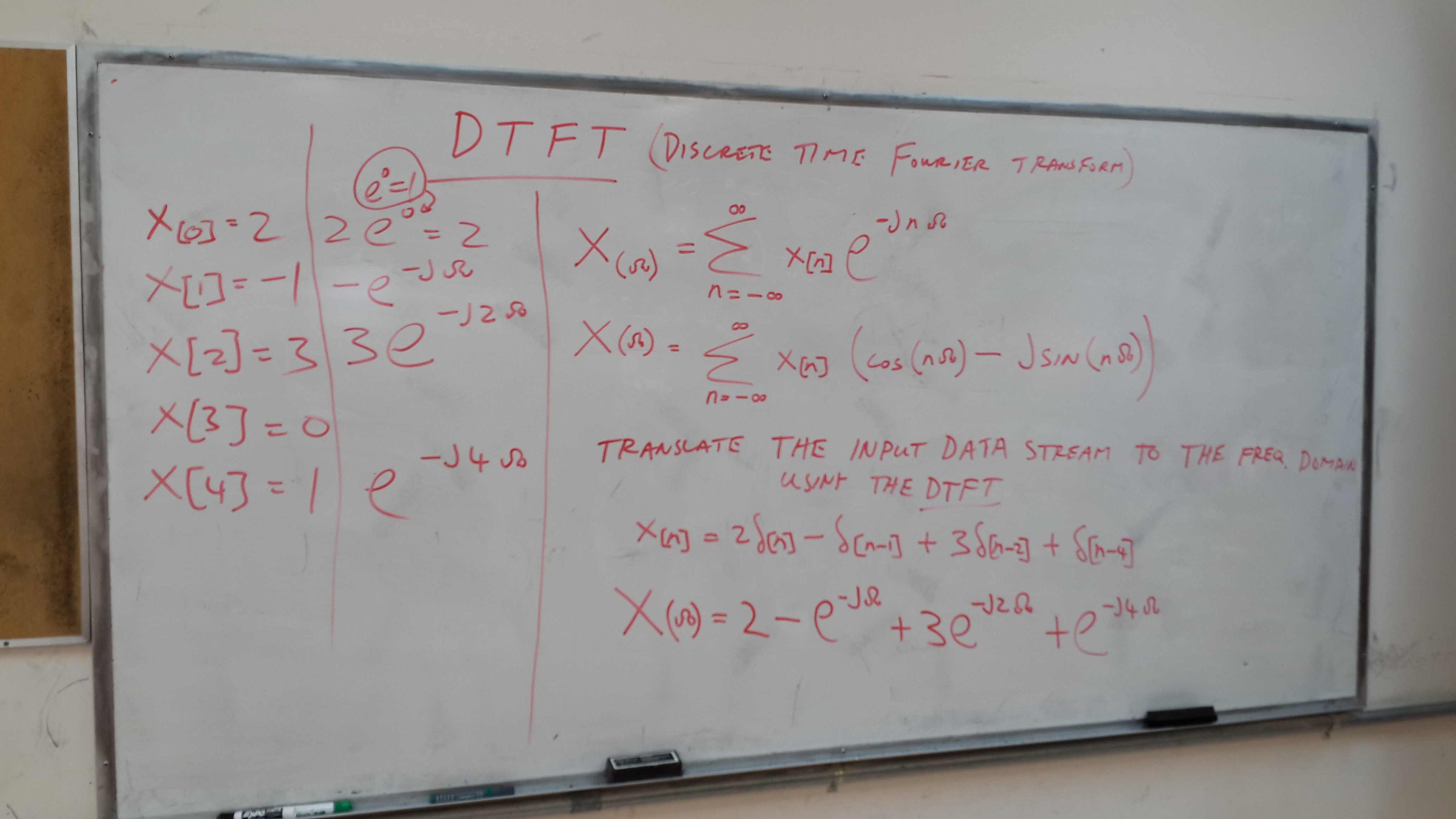

Translating the input data to the Frequency Domain using the DTFT

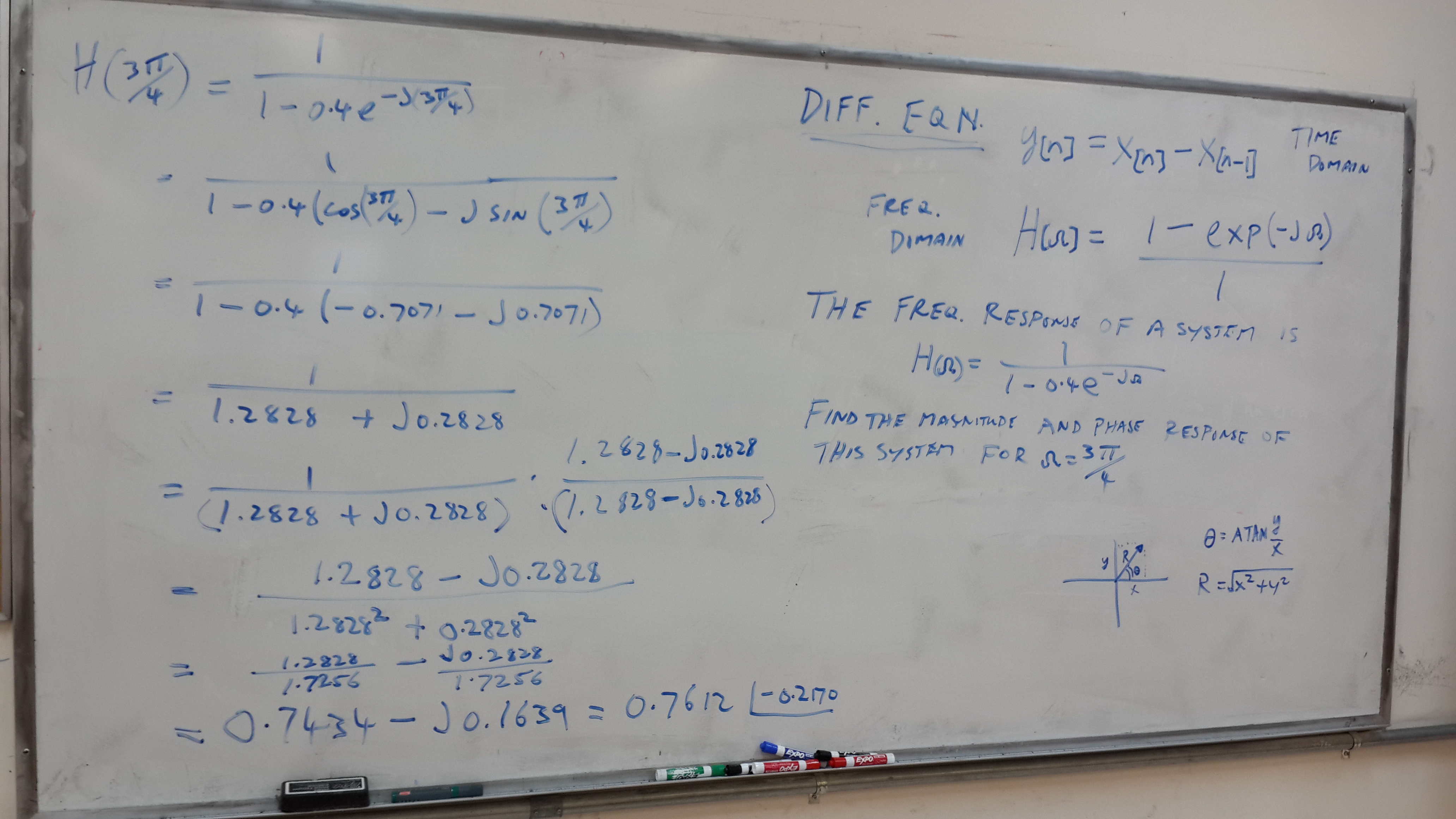

Finding the Frequency Response from the Difference Equation
Worked Example - Frequency Response from Difference Equation
Energy and Power signals in time domain, Parseval's theorem

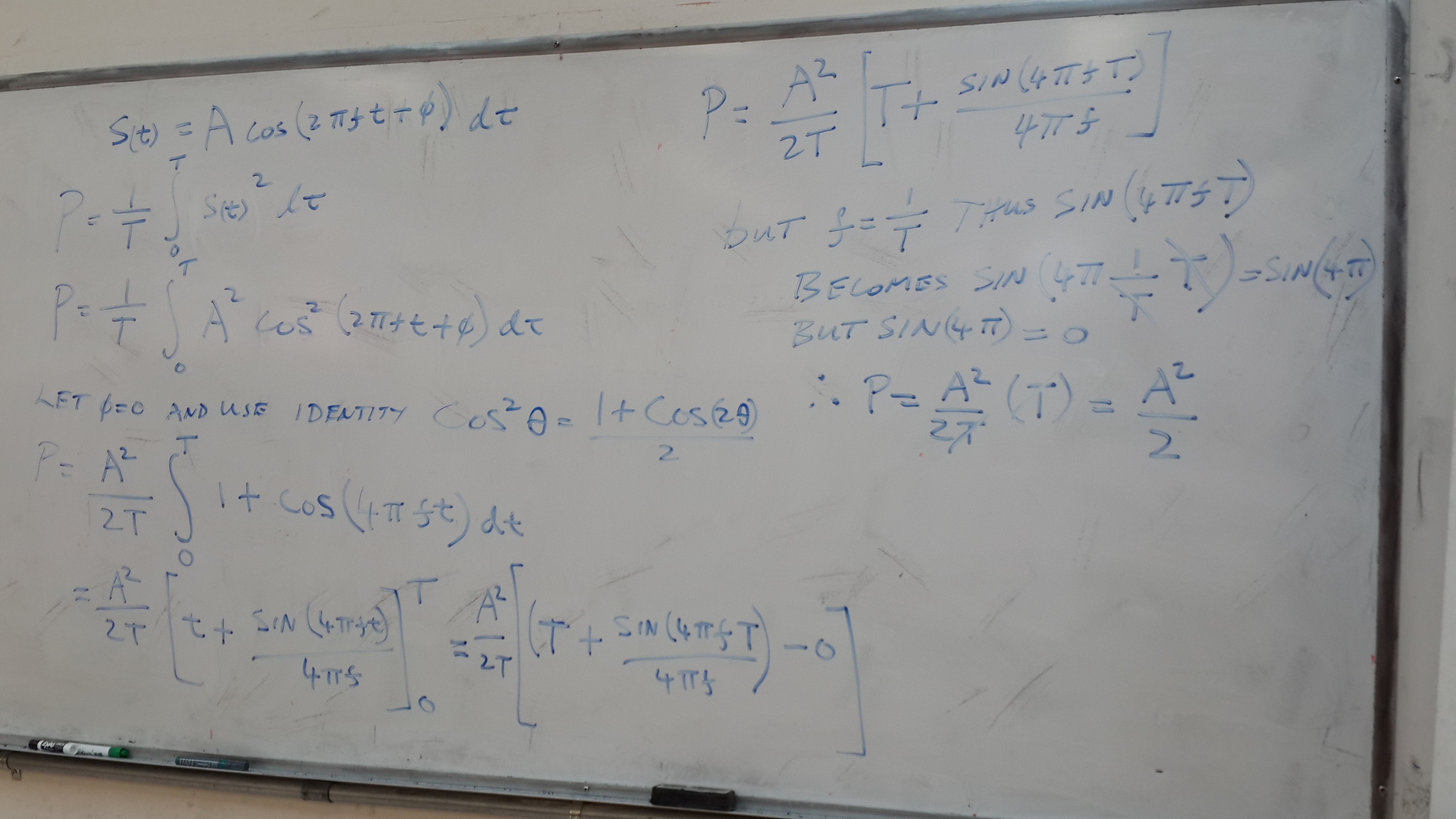

Finding the power in a sinusoid using calculus
Adding the phasors of the sinusoid to prove Parseval's theorem

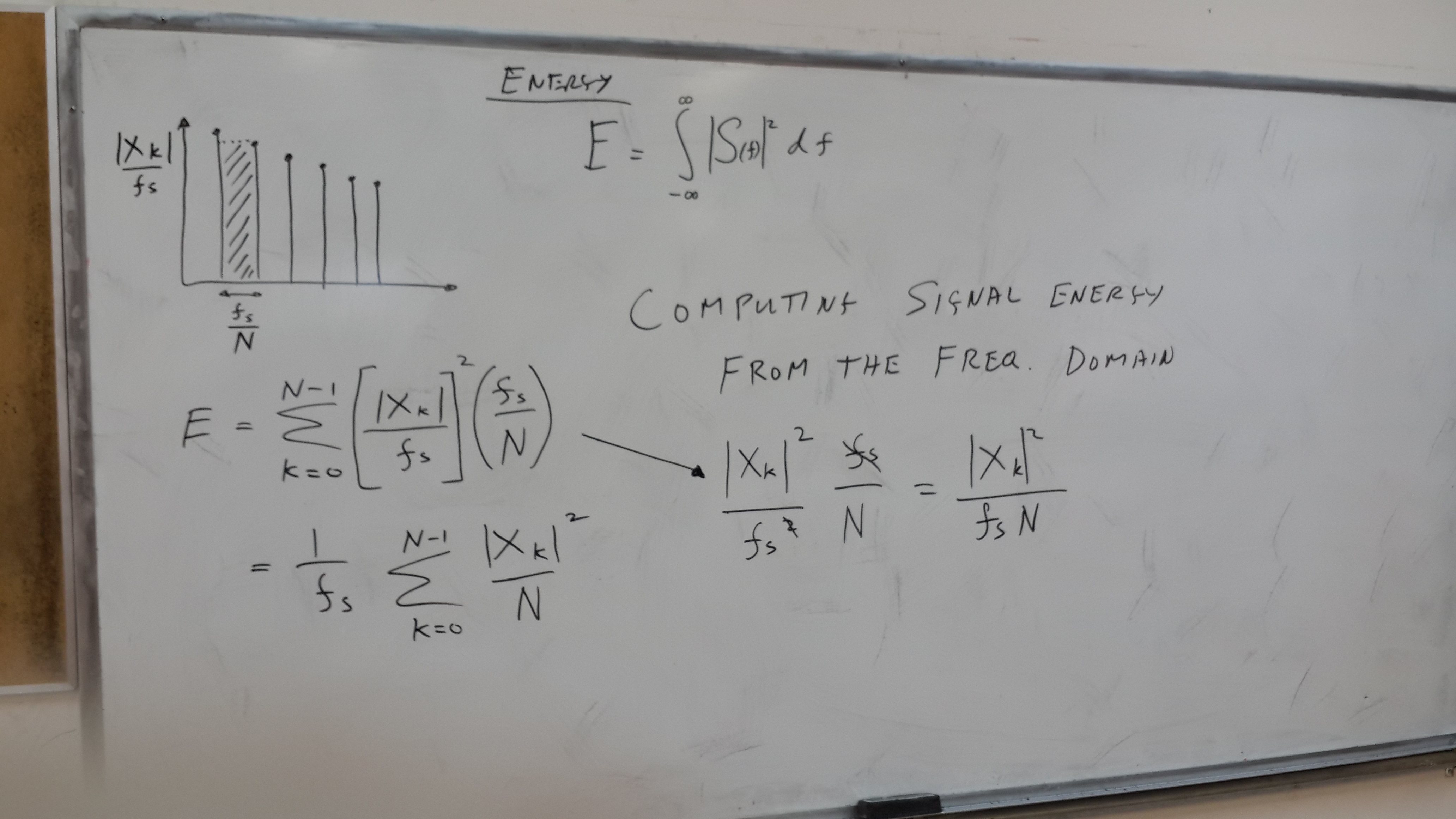

Computing signal energy from the frequency domain

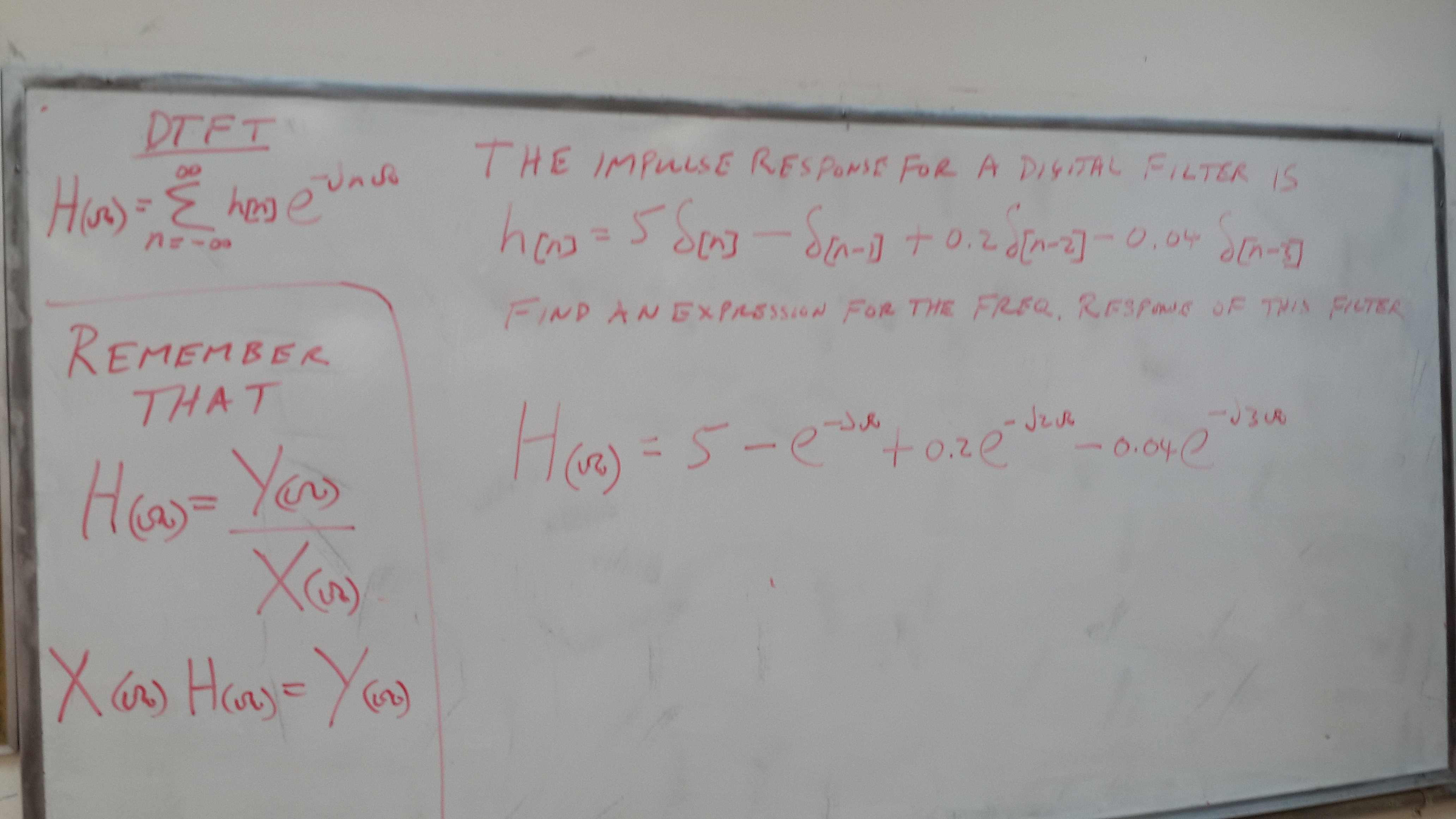

Finding the Frequency Response from the Impulse Response

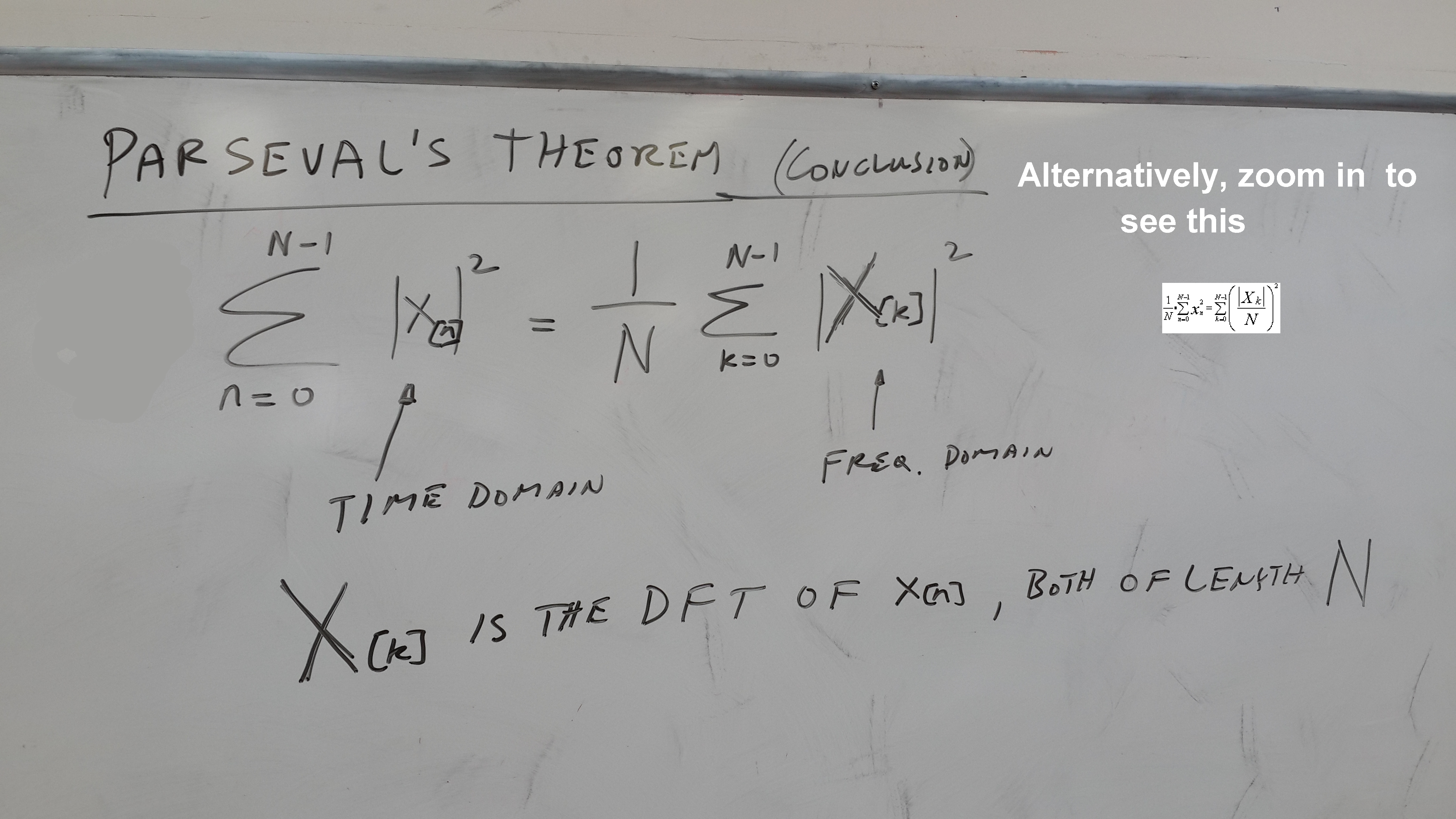

Various statements of Parseval's theorem

Lecture - Nov 2

Summary - Difference Equation, Impulse Response, Frequency Response, DFT and DTFT
Summary - Proof of Parseval's Theorem

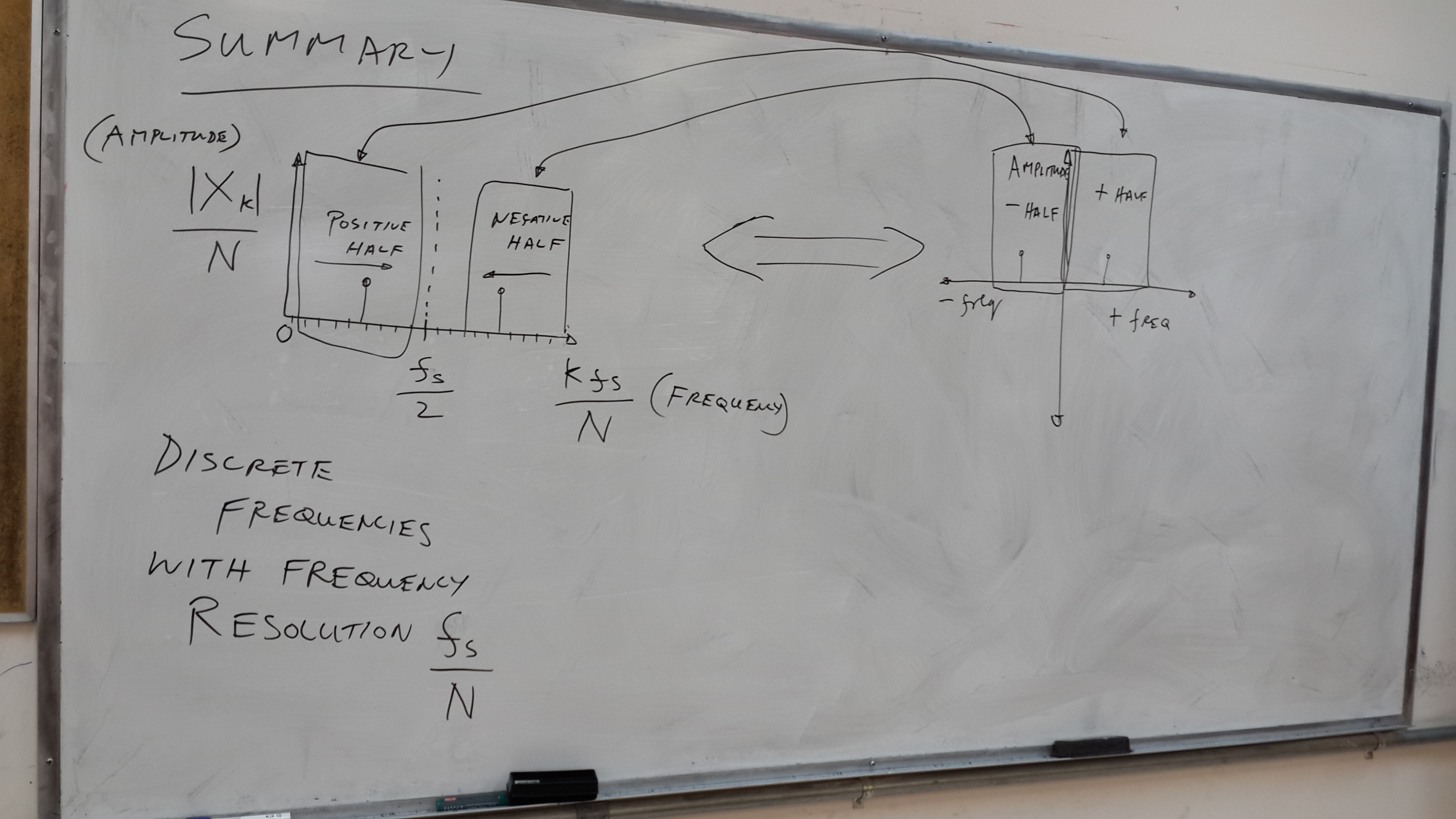

Summary - Different Double Sided Spectrums
Introduction to the z-domain
z-domain and sum of a geometric series

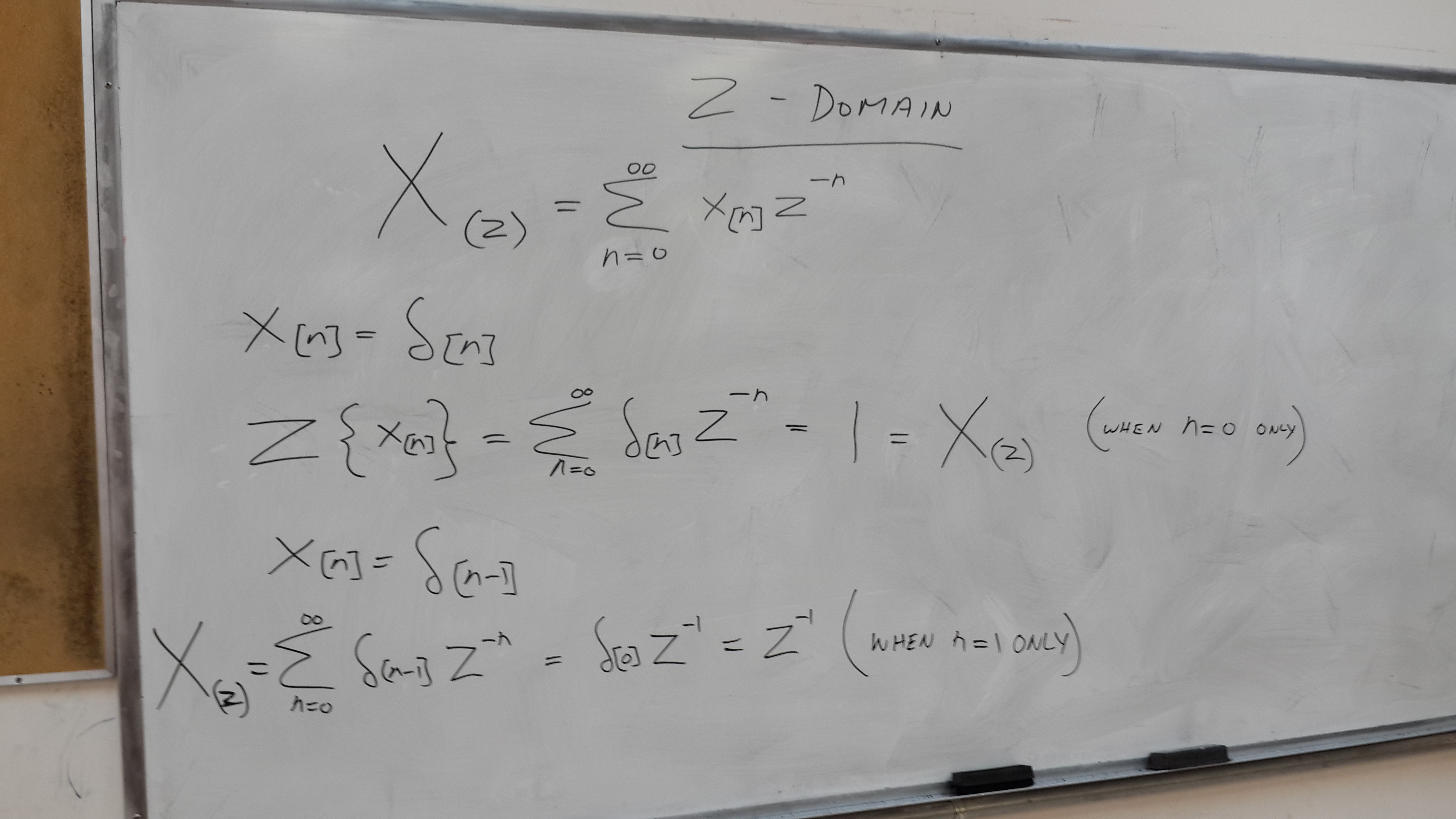

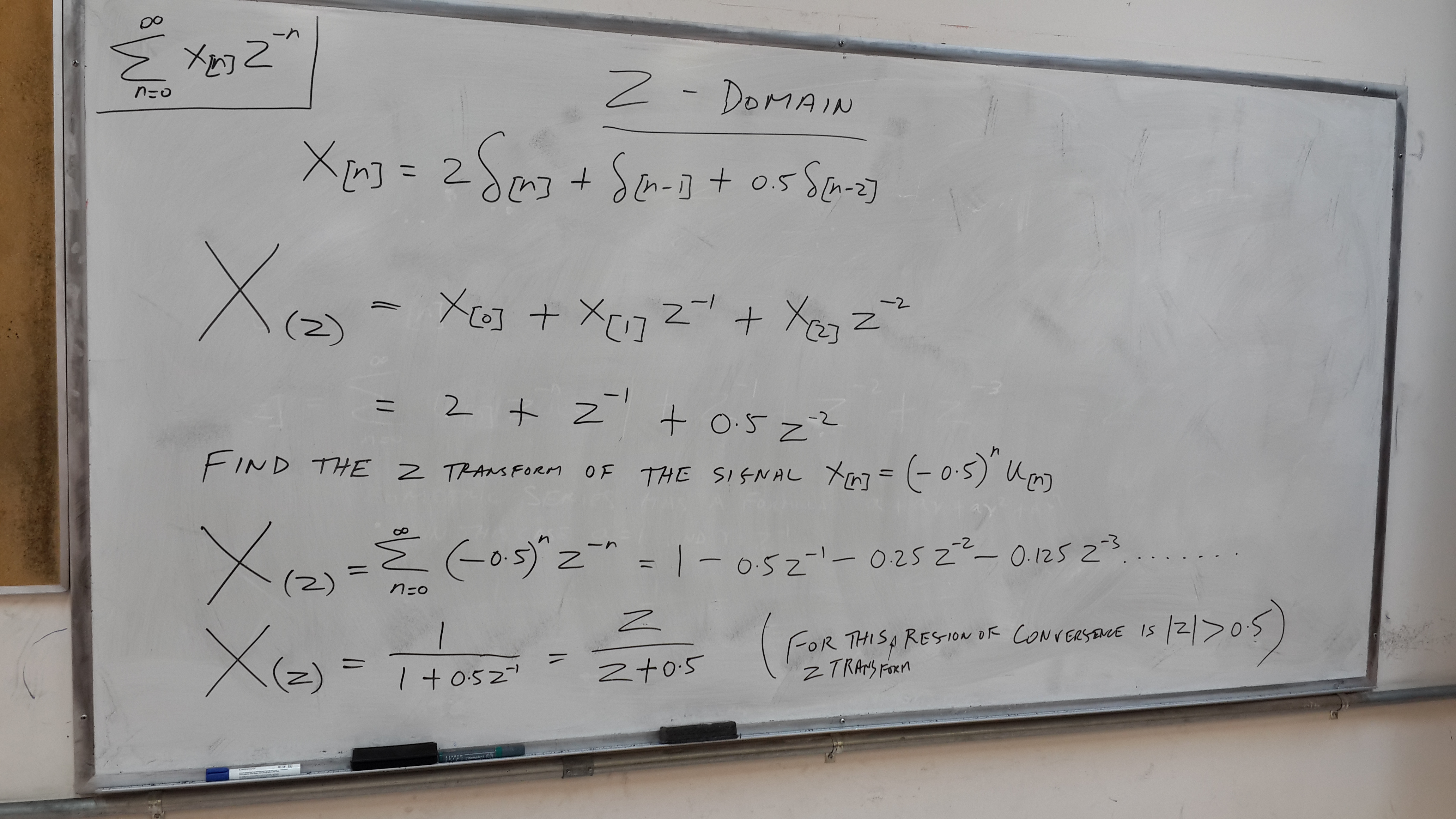

Finding the z-domain transform of various time-domain data inputs

Lecture - Nov 9

Summary of Z-transform (transfer function), Frequency response and Difference equation

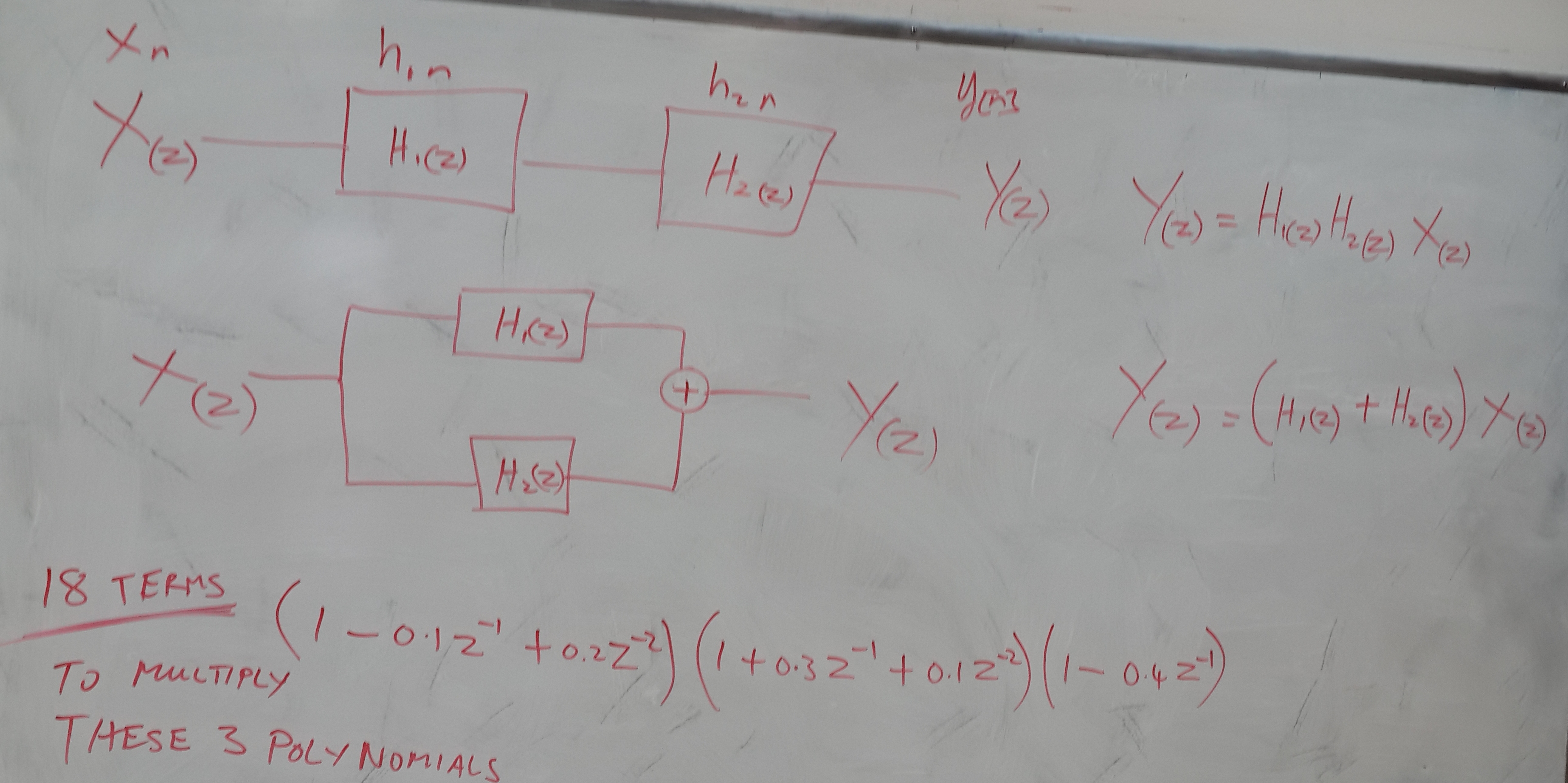

Transfer functions in series and parallel

Lecture - Nov 16

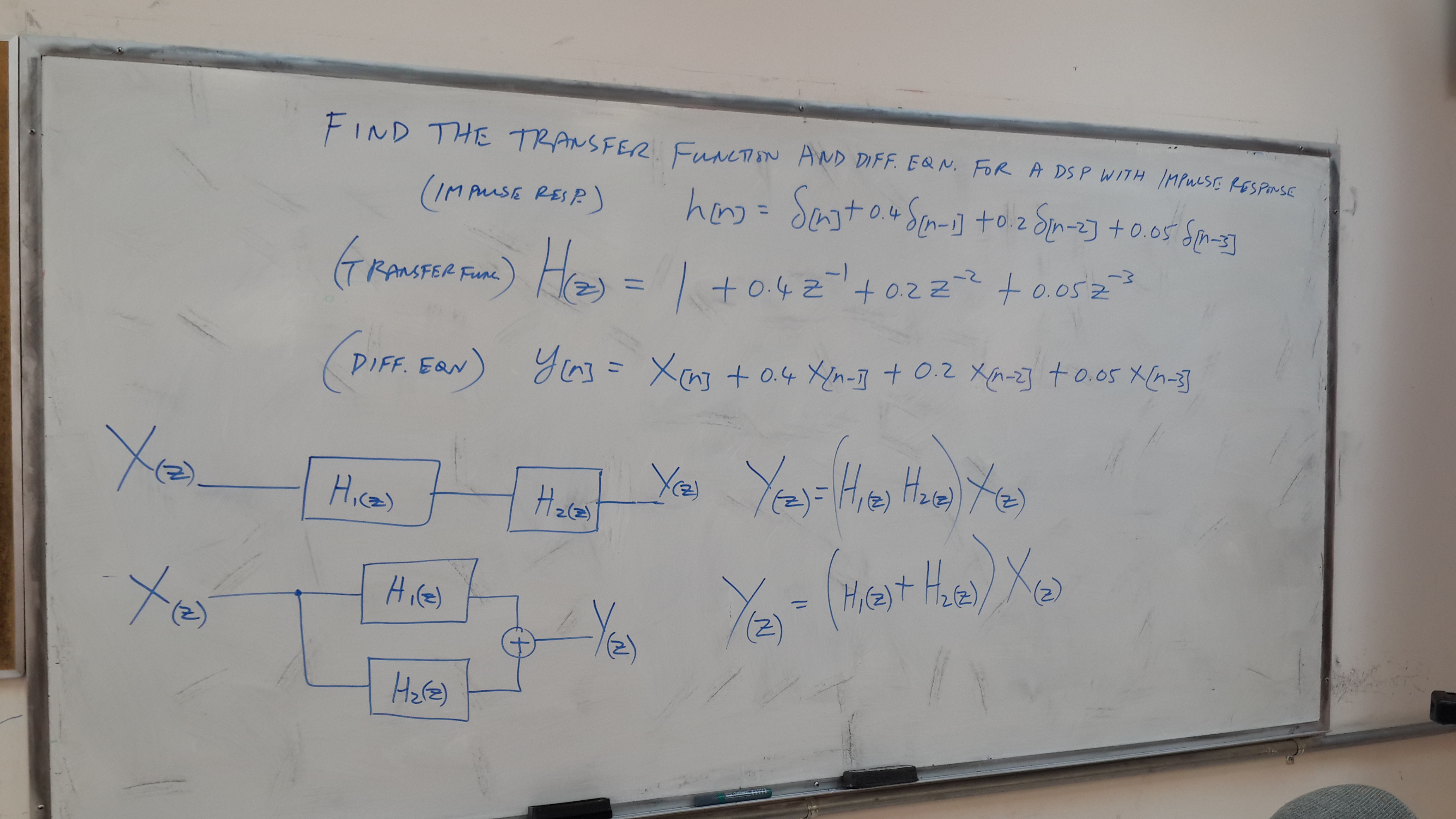

Finding the transfer function from the difference equation

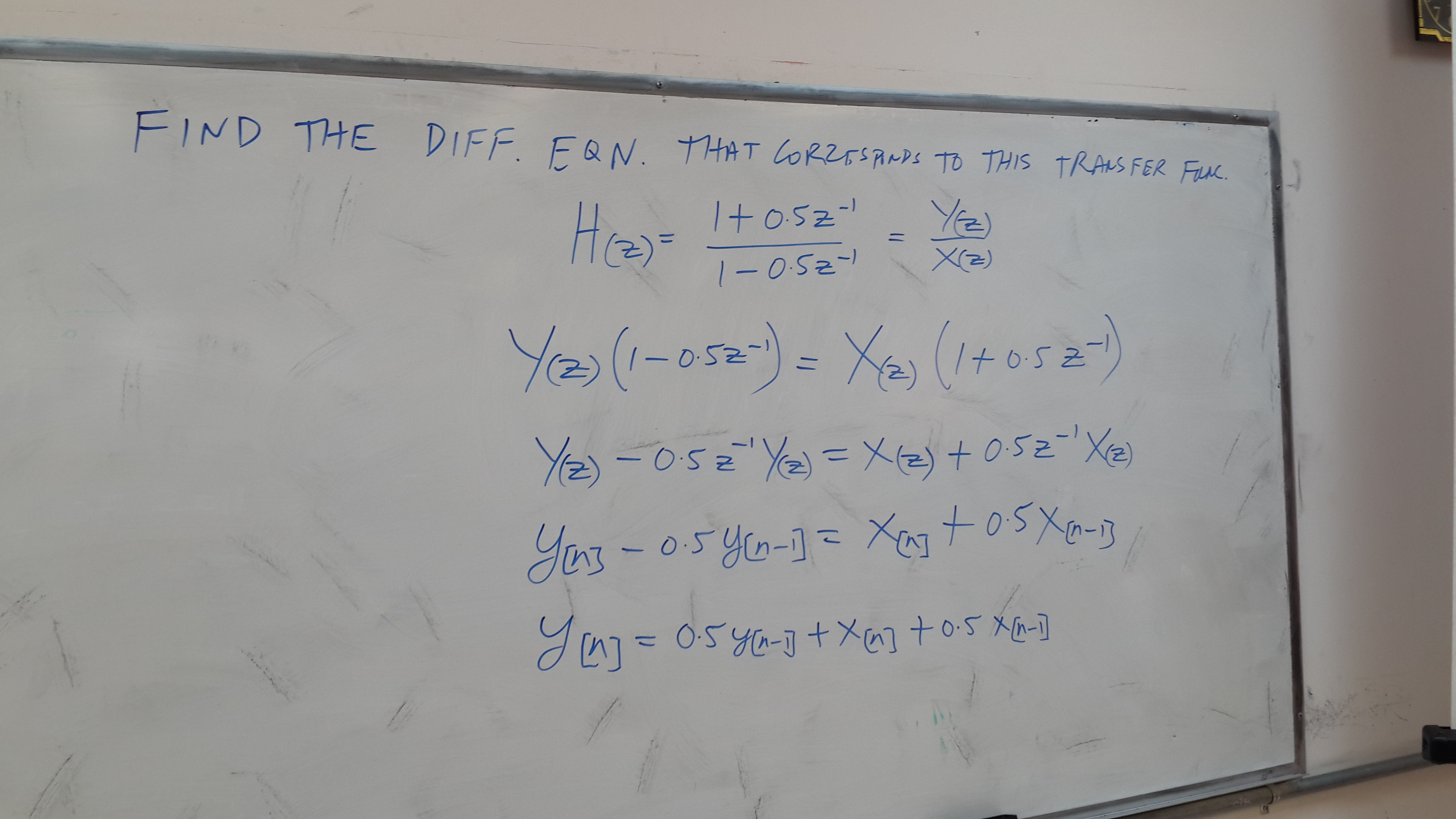

Finding the difference equation from the transfer function
Finding the difference equation from the transfer function - second example
Finding the transfer function and the difference equation from the impulse response

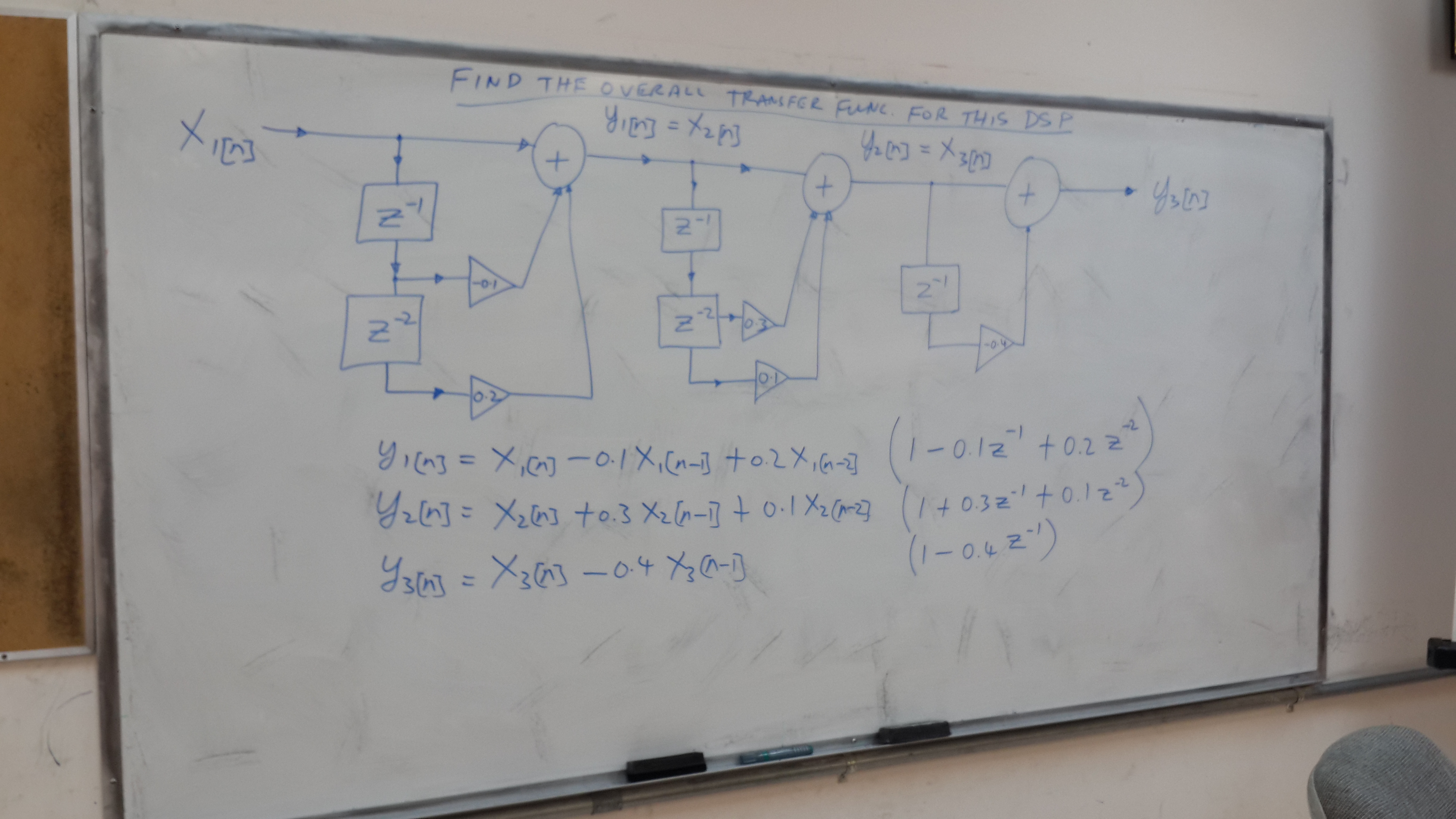

Finding the overall transfer function for DSP's in series from a diagram
Working for the above example

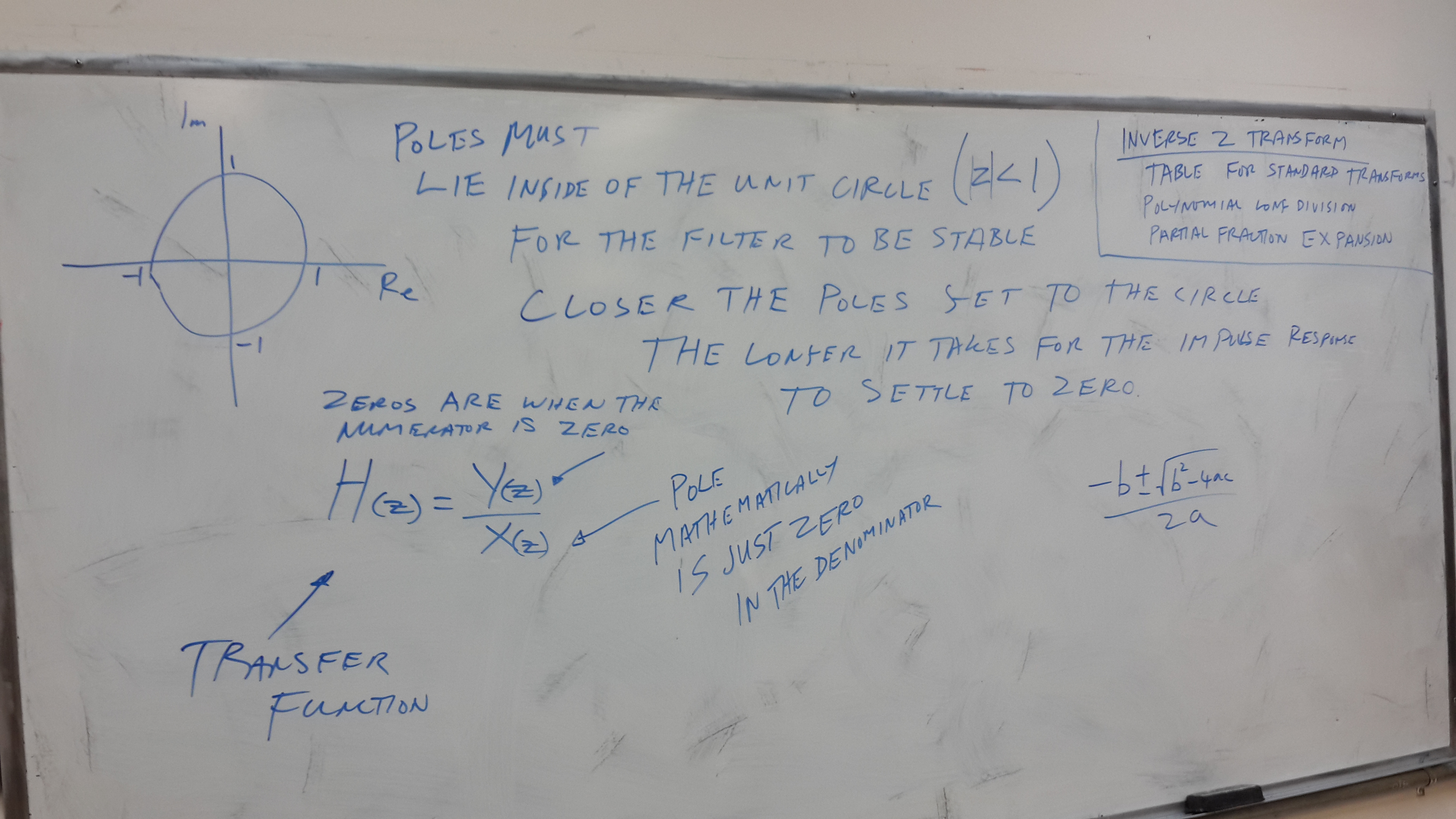

Relationship of Poles and Zeros to the transfer function

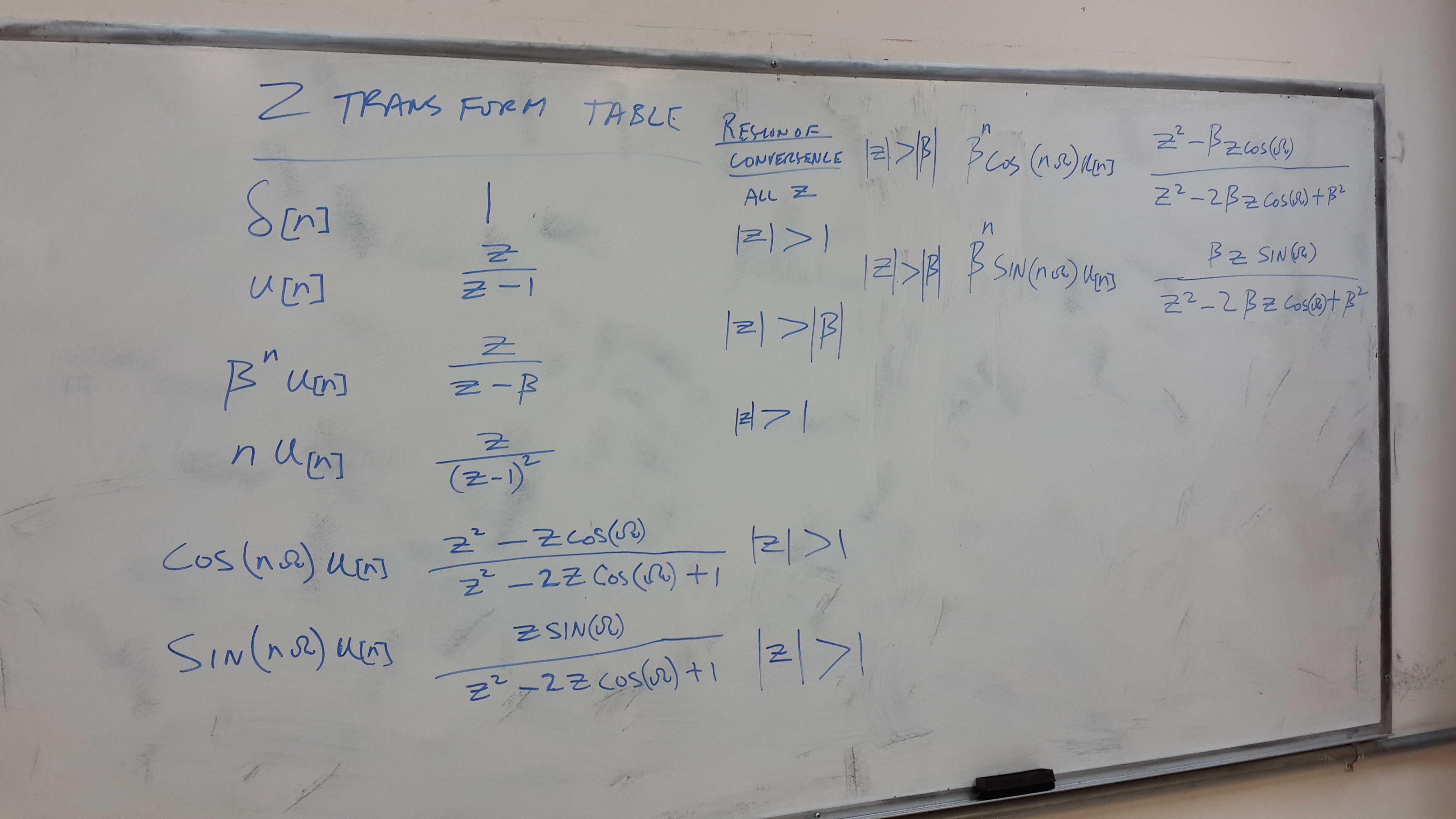

Table of Inverse Z-transforms

Lecture - Nov 23

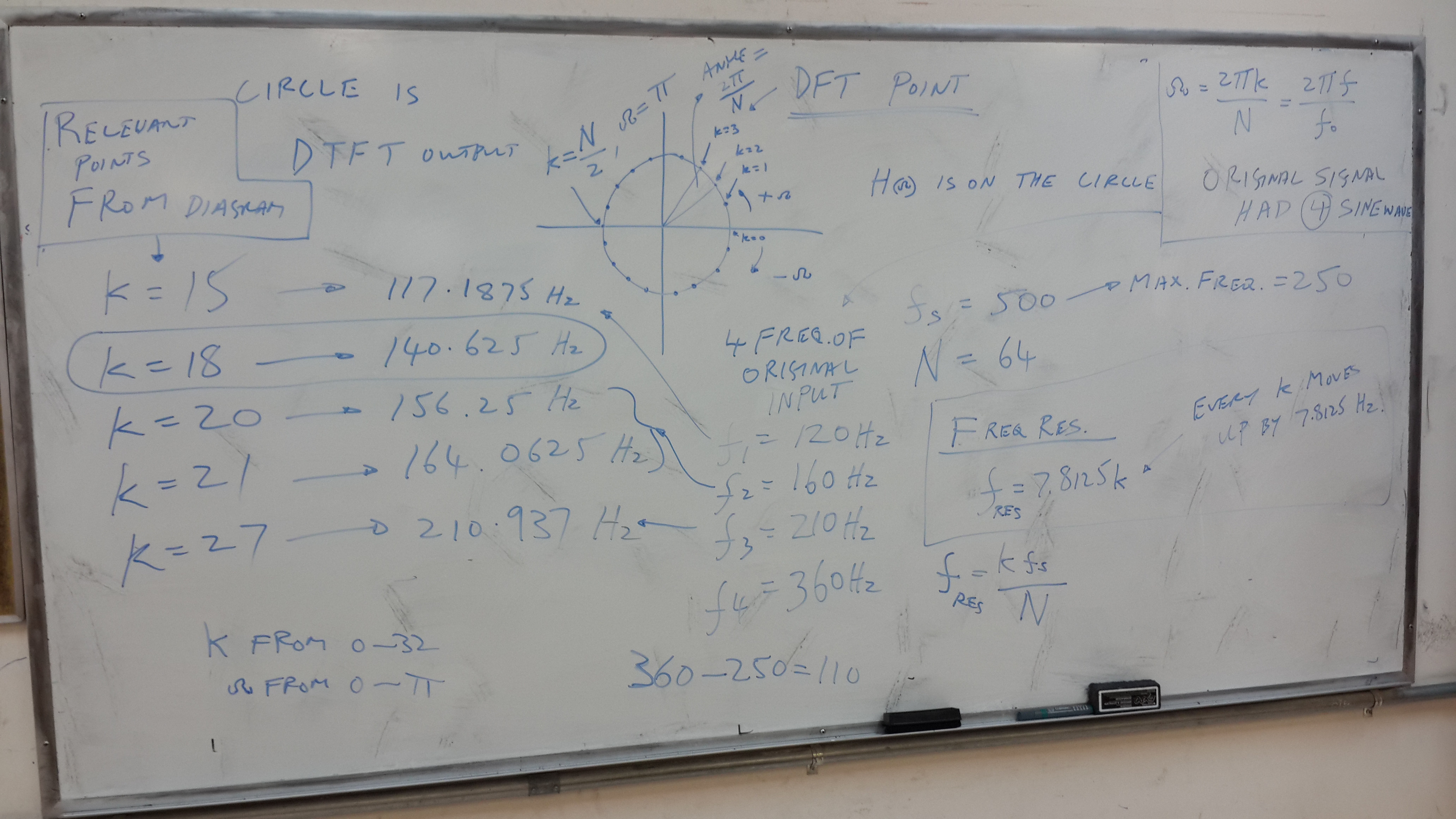

Relating the original input frequencies to it's (n-point) DTFT graph

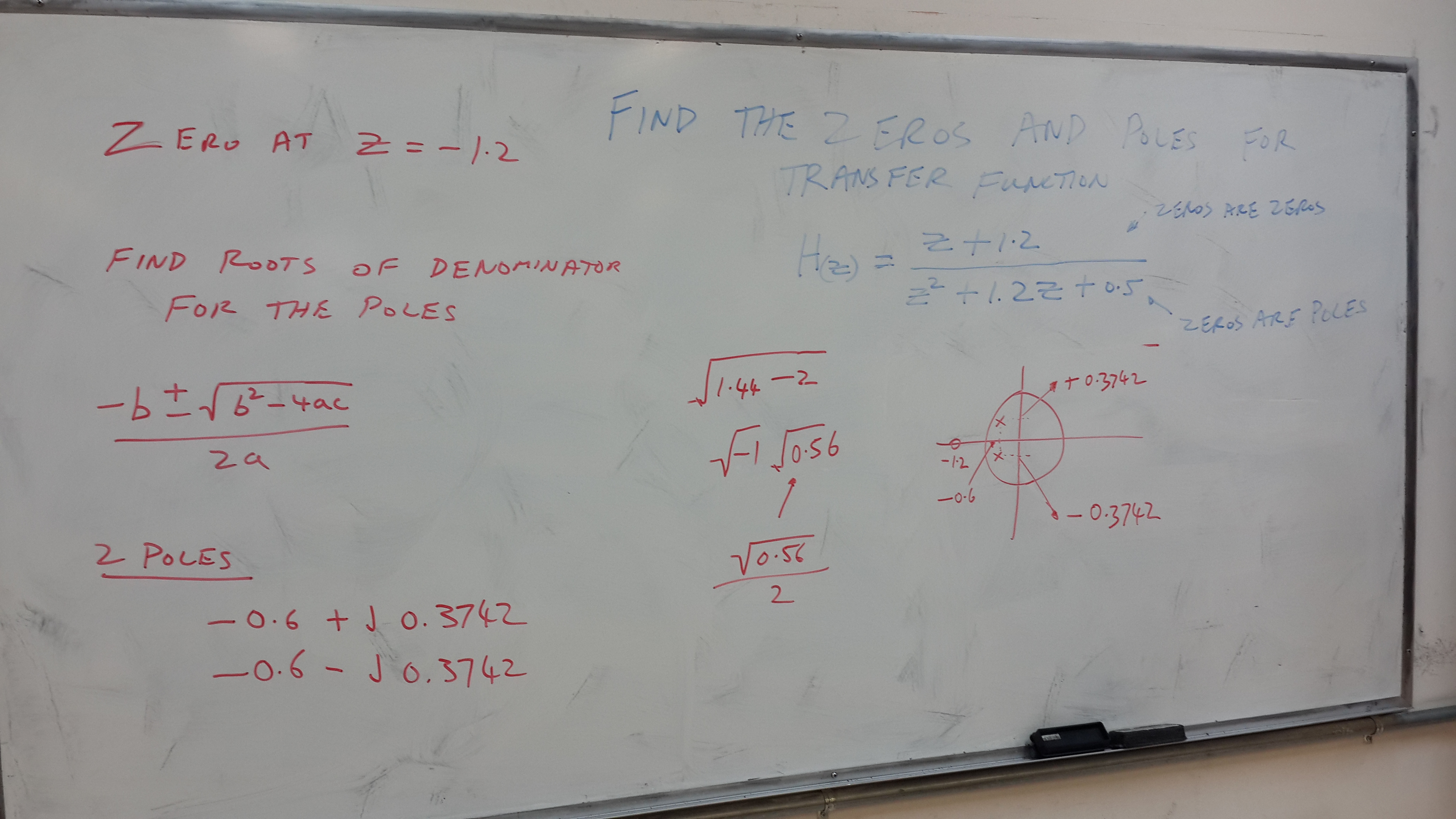

Finding the Poles and Zeros for a given transfer function

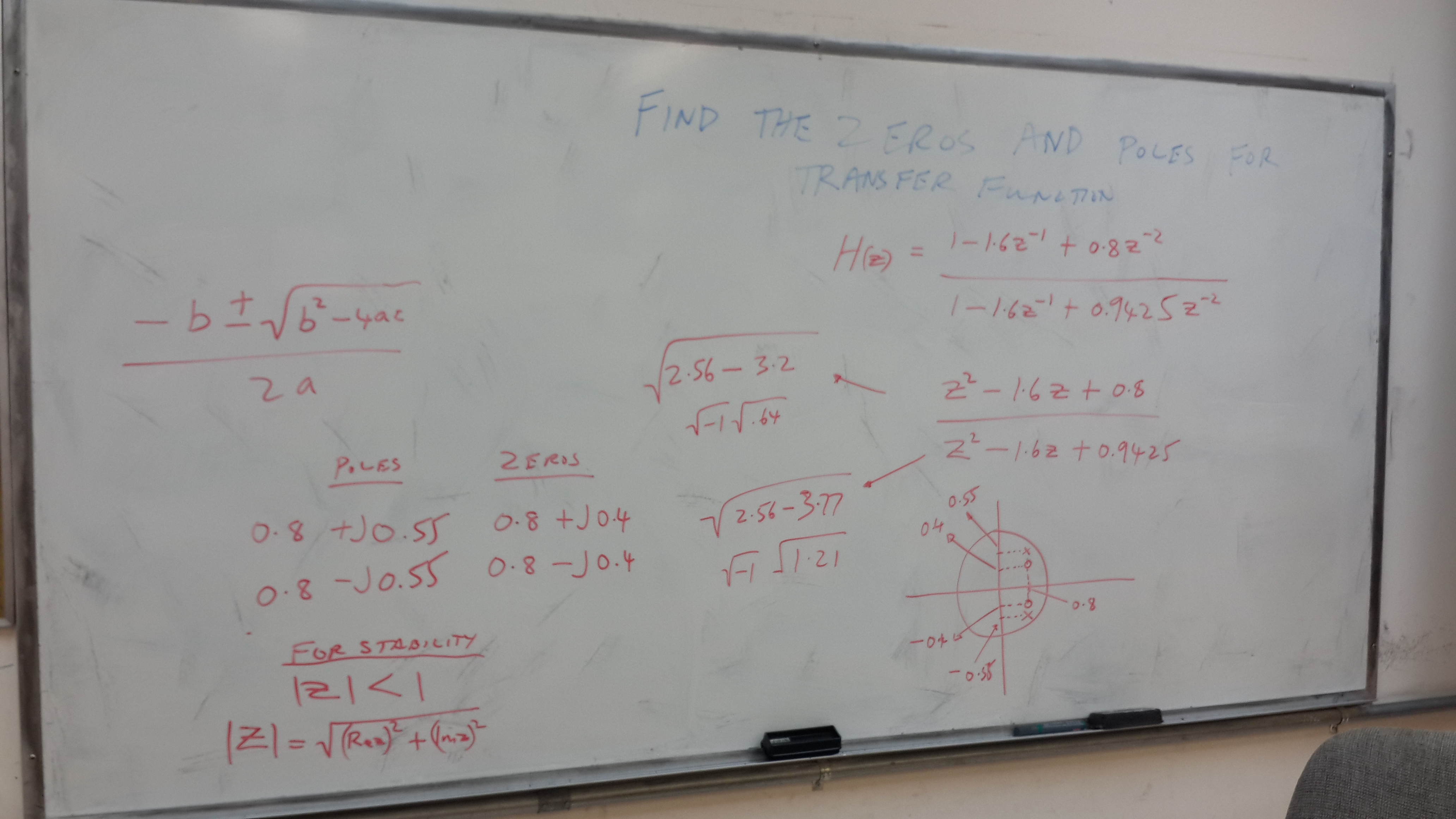

Finding the Poles and Zeros for a given transfer function
