Assignments, Tests and Exam with solutions

Assignments

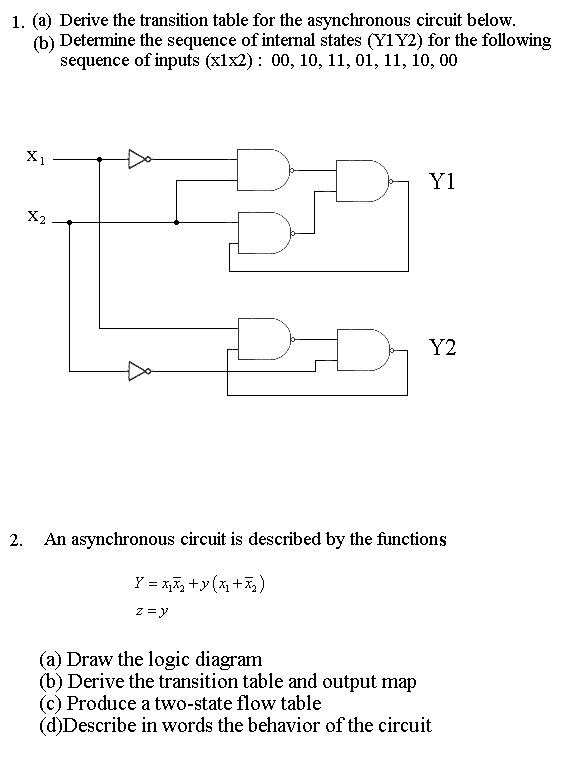

Assignment 1 HERE
Assignment 2 HERE

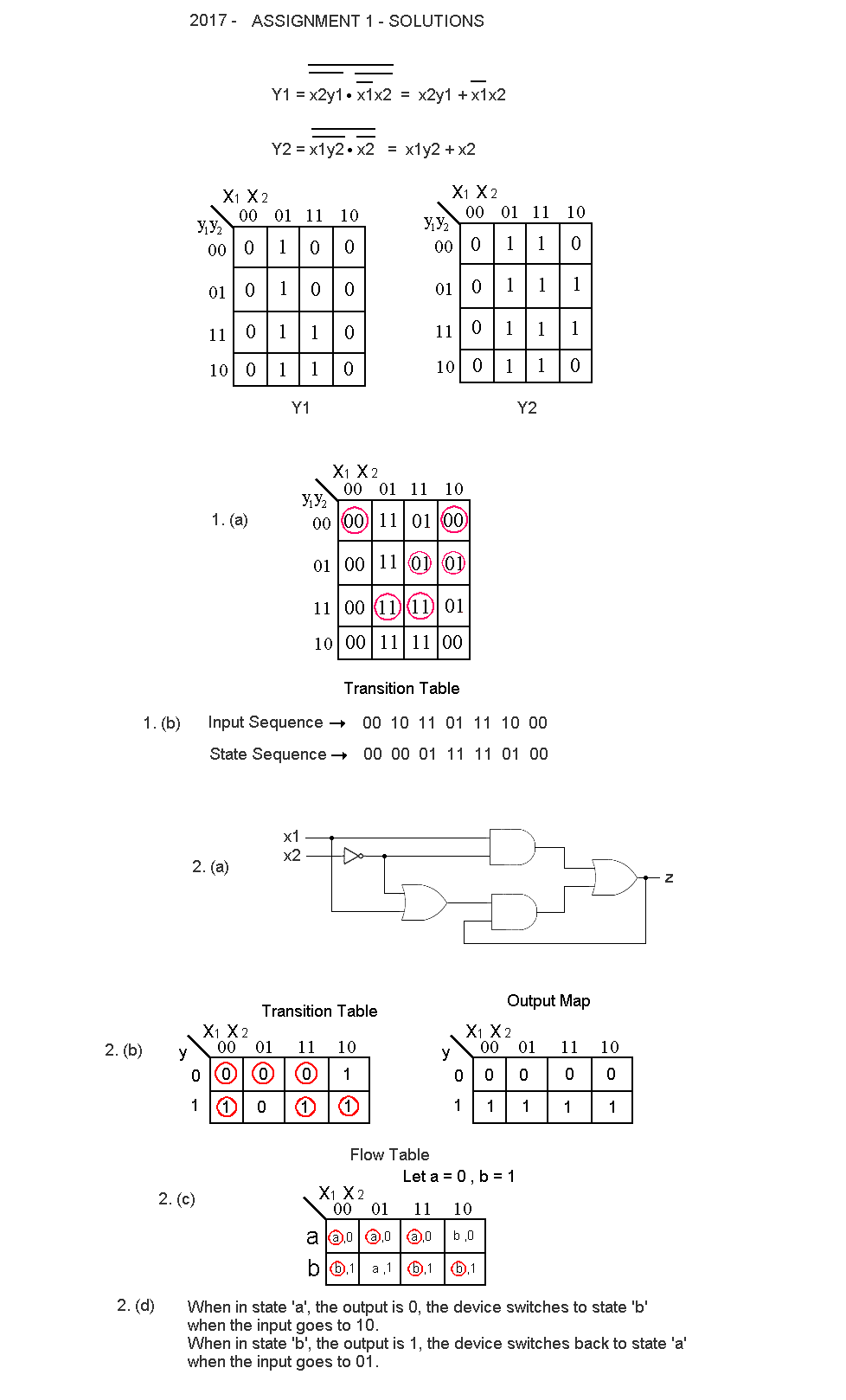

SOLUTIONS for Assignment 1

SOLUTIONS for Assignment 2 below:
Assignment 2 - part 1 (negative and positive edge triggered D flip flop)
Assignment 2 - part 2 - reduction of flow table, transition table and output map
Assignment 2 - part 3 - implementation with S-R latches
Assignment 2 - part 4 - logic diagram

Class Tests

Class test 1 HERE
Class test 2 HERE
Class test 3 HERE

SOLUTIONS for class test 1 below:
SOLUTION for question 1

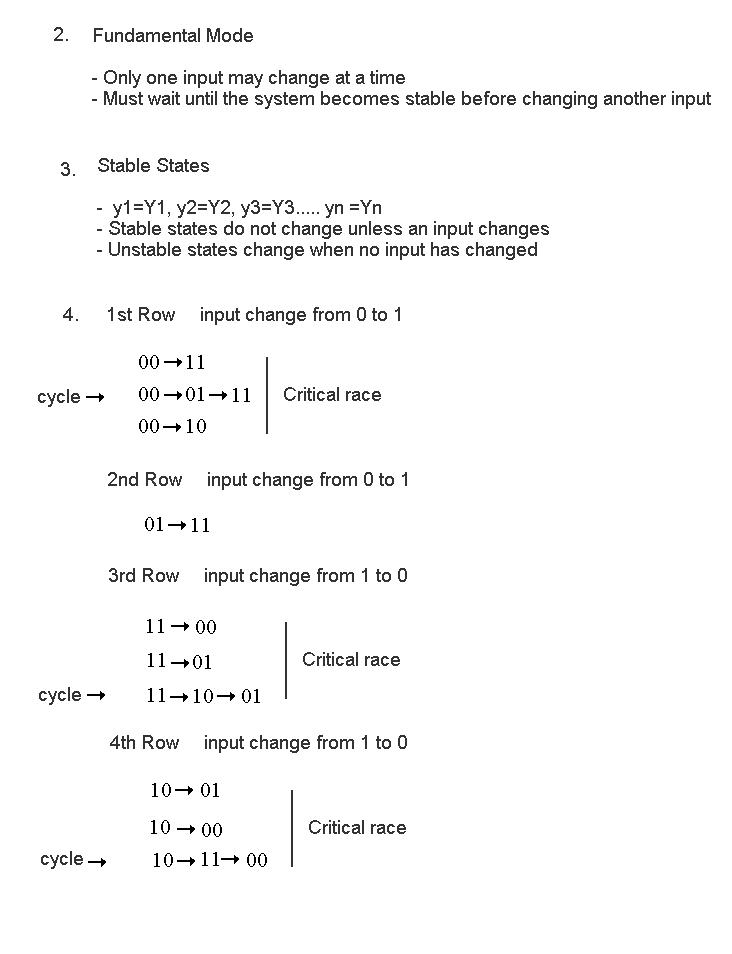

SOLUTION for question 2 to question 4

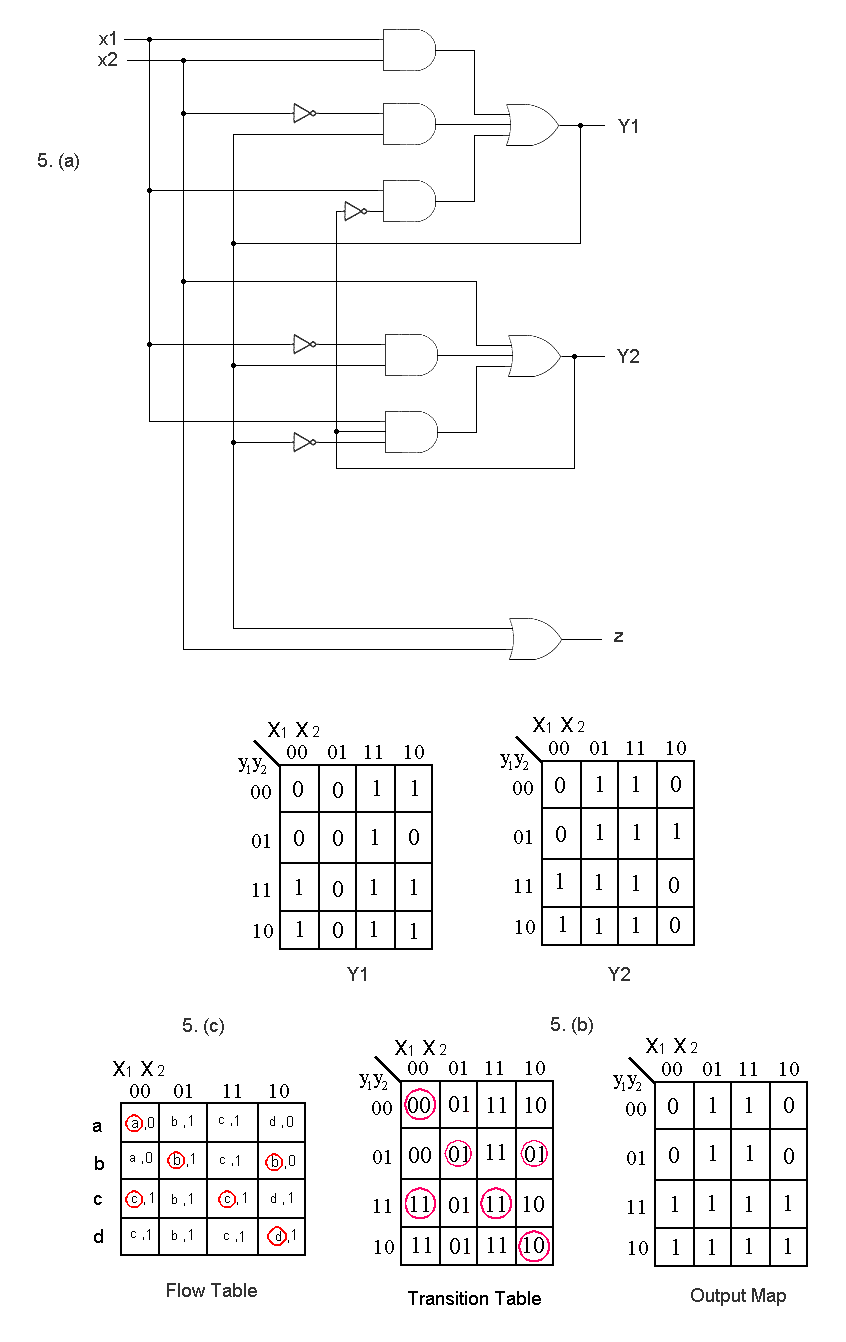

SOLUTION for question 5

SOLUTIONS for class test 2 below:
SOLUTION to Question 1
SOLUTIONS to question 2 and question 3

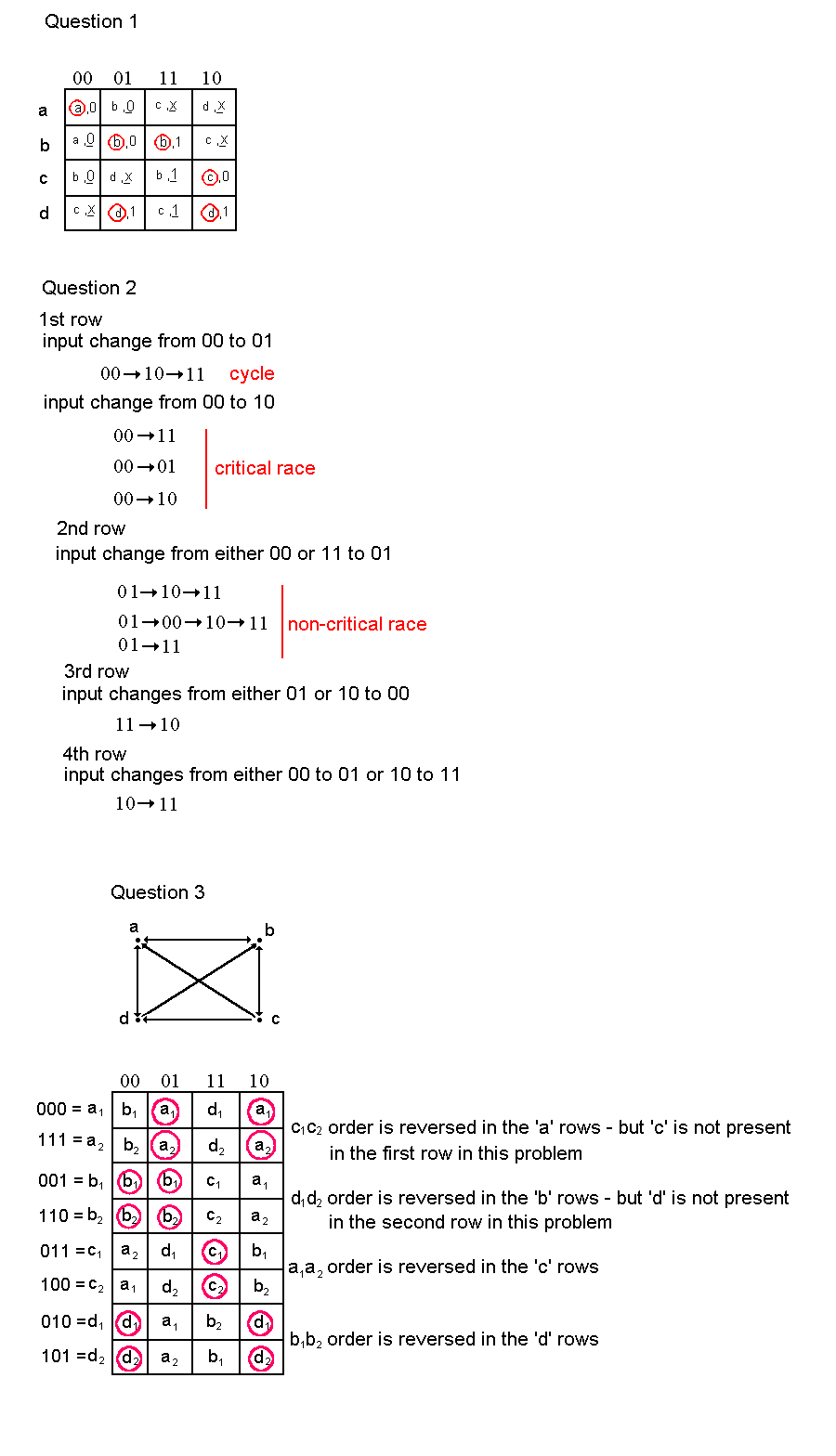

SOLUTIONS for Class test 3

Exam

2017 April/May exam HERE

SOLUTIONS: 2017 April/May exam HERE
