EL31P Parallel Reference

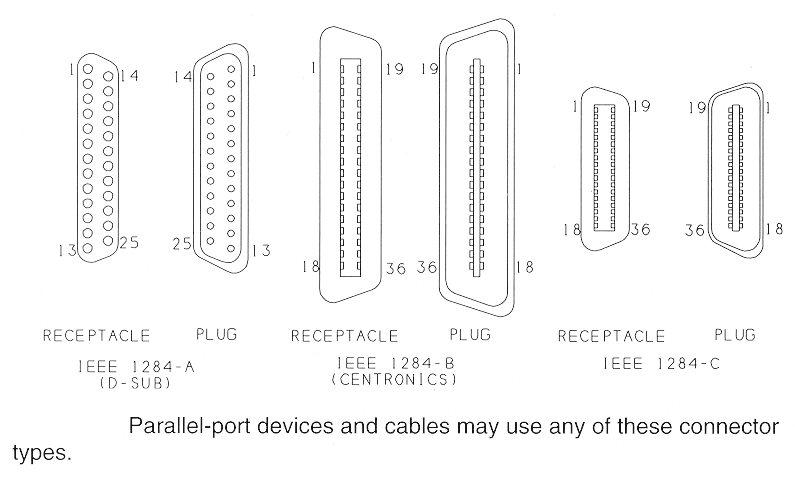

parallel connectors

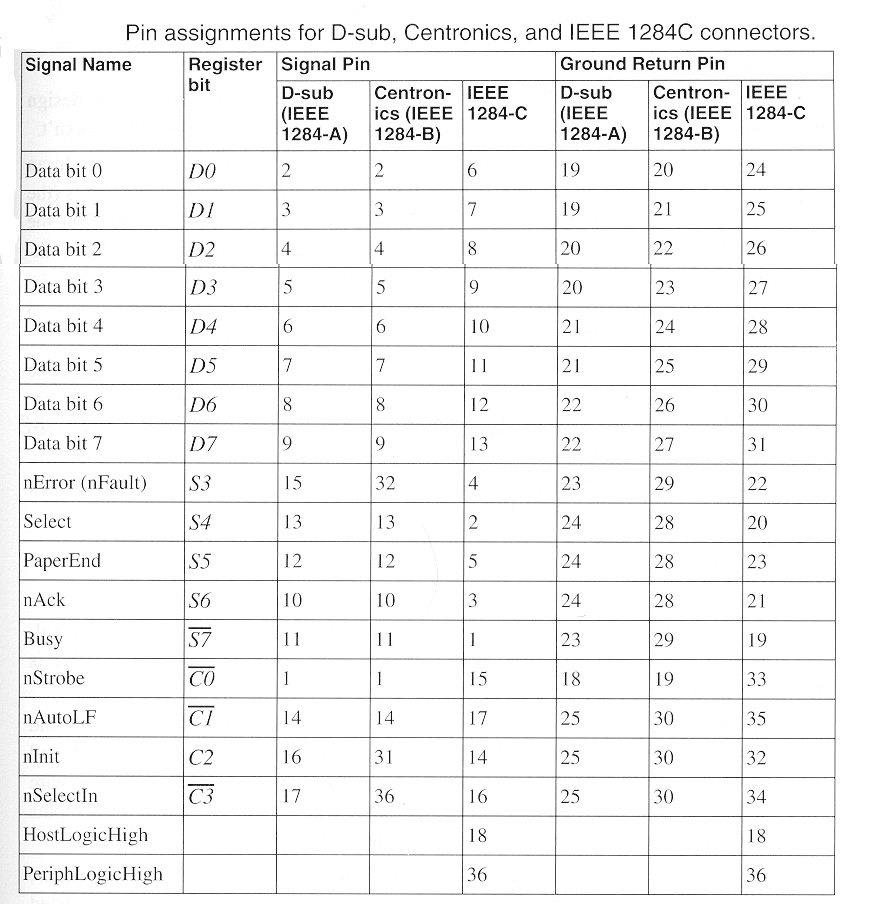

pin assignments for the connectors

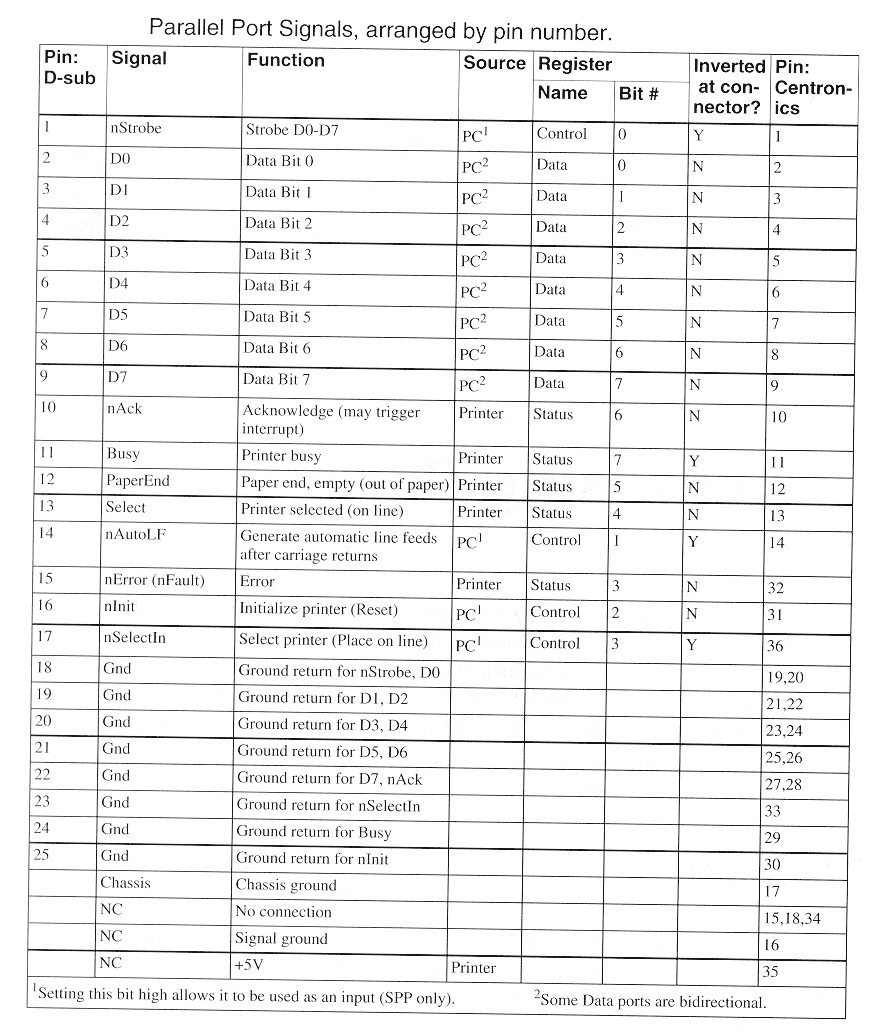

the signals, arranged by pin number

the input and output registers

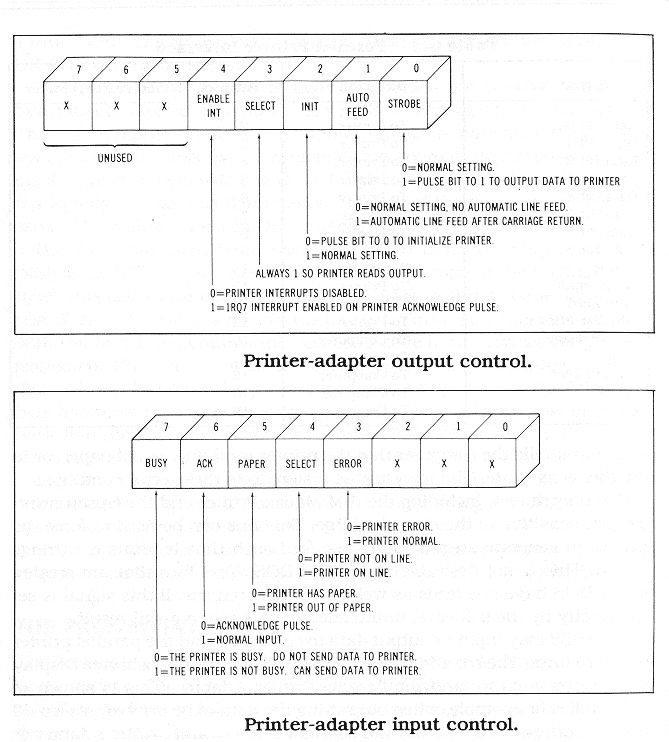

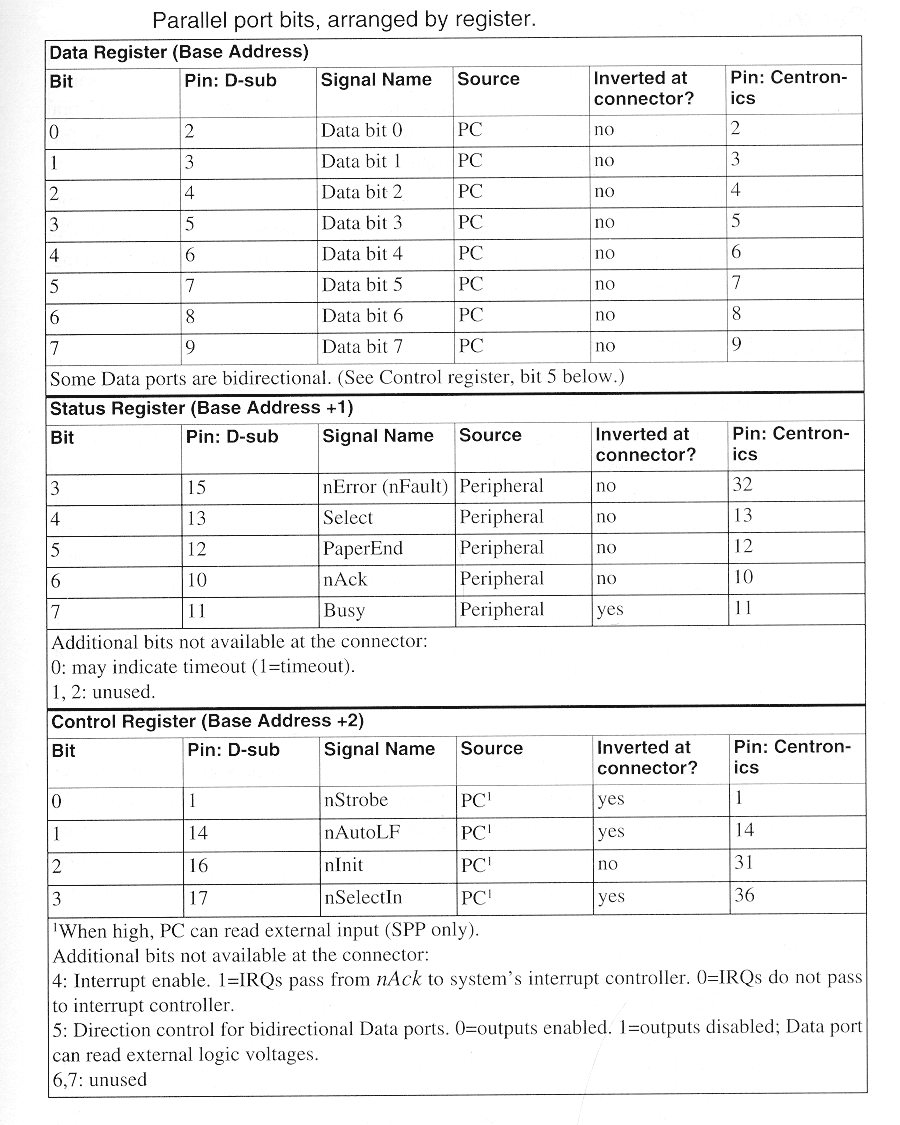

the bits arranged by register

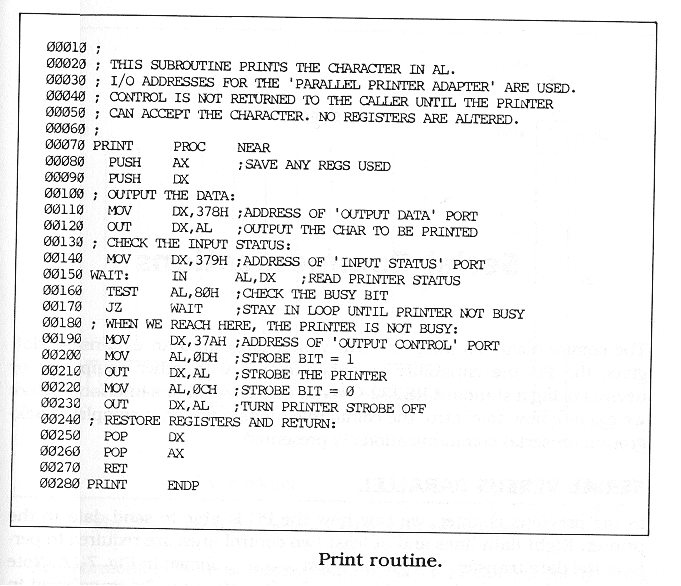

the PRINT routine

MANY THANKS to the following sources for these Diagrams:

PARALLEL PORT COMPLETE by Jan Axelson (Lakeview Research, Madison, WI 53704)

8088 Assembler Language Programming: The IBM PC by David Willen & Jeffrey Krantz (Howard W. Sams & Co., a division of Macmillan)
